RZB110 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FML 220POS 0.050
| Part | Material - Insulation | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Color | Card Thickness | Card Thickness | Termination | Number of Positions | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Card Type | Pitch | Pitch | Read Out | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

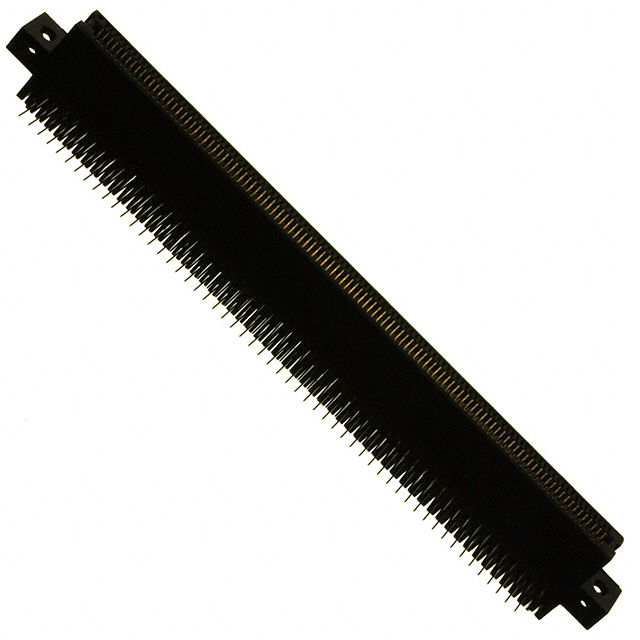

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Phosphor Bronze | 0.25 Ám | 10 Áin | Black | 1.57 mm | 0.062 in | Solder Staggered | 220 | 2 | -65 ░C | 125 °C | Hairpin Bellows | Right Angle Through Hole | 0.125 " | Side Mount Opening Unthreaded | 3.18 mm | Gold | Non Specified - Dual Edge | 0.05 in | 1.27 mm | Dual | Female |

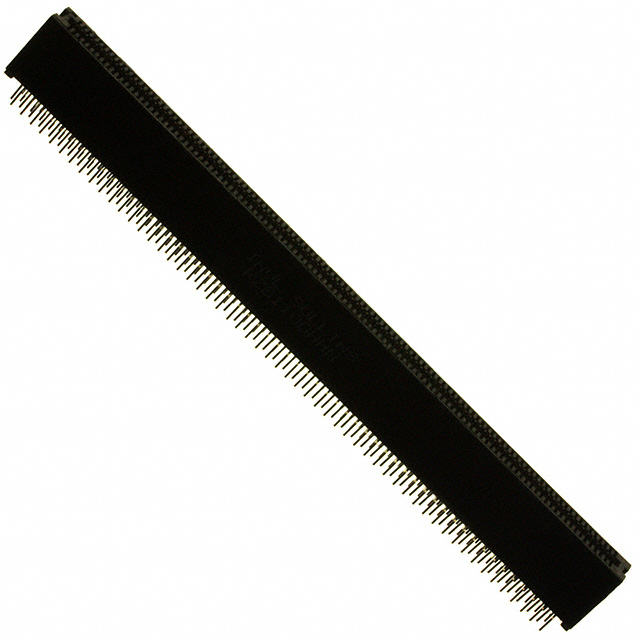

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Phosphor Bronze | 0.25 Ám | 10 Áin | Black | 1.57 mm | 0.062 in | Solder Staggered | 220 | 2 | -65 ░C | 125 °C | Hairpin Bellows | Through Hole | Gold | Non Specified - Dual Edge | 0.05 in | 1.27 mm | Dual | Female |
