DF75 Series

Catalog

DIODE MODULE 800V 75A

Part	Voltage - Peak Reverse (Max)	Mounting Type	Current - Average Rectified (Io)	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Package / Case	Voltage - Forward (Vf) (Max) @ If	Diode Type	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]	Supplier Device Package
SanRex Corporation DF75LB80	800 V	Chassis Mount	75 A	-40 °C	150 °C	Standard	Module	1.3 V	Three Phase	8 mA
SanRex Corporation DF75BA80	800 V	Chassis Mount	75 A	-40 °C	150 °C	Standard	Module		Three Phase	10 mA	1.2 V
SanRex Corporation DF75LA160	1.6 kV	Chassis Mount	75 A	-40 °C	150 °C	Standard	Module	1.3 V	Three Phase	8 mA
SanRex Corporation DF75LB160	1.6 kV	Chassis Mount	75 A	-40 °C	150 °C	Standard	Module	1.3 V	Three Phase	8 mA
SanRex Corporation DF75AA160	1.6 kV	Chassis Mount	75 A	-40 °C	150 °C	Standard	Module		Three Phase	10 mA	1.4 V
SanRex Corporation DF75LA80	800 V	Chassis Mount	75 A	-40 °C	150 °C	Standard	Module	1.3 V	Three Phase	8 mA

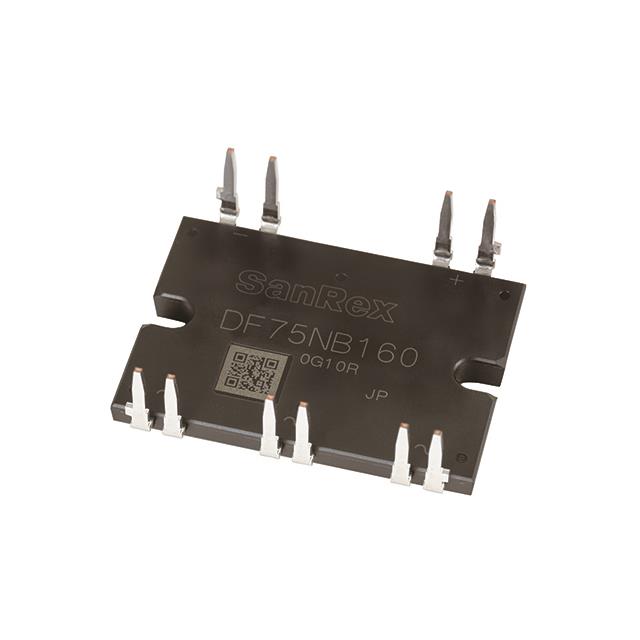

SanRex Corporation DF75NB160	1.6 kV	Through Hole	75 A	-40 °C	150 °C	Standard	5-PowerDIP Module	1.3 V	Three Phase	8 mA		5-DIP
