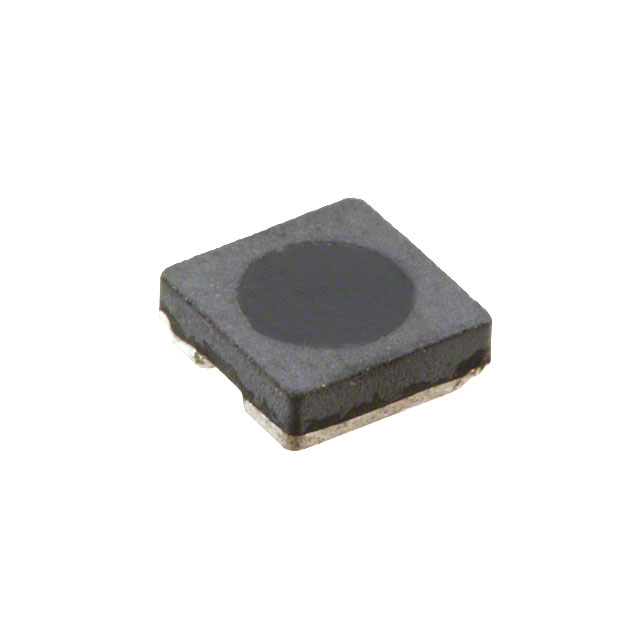

SRR3011 Series

Catalog

IND3.8X3.8X1.15MM,22UH30%0.38A,SHDSMD /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES

Part	Tolerance	Current Rating (Amps)	Shielding	Mounting Type	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Material - Core	Inductance	Q @ Freq	Package / Case	Frequency - Self Resonant	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)
Bourns Inc. SRR3011-220YL	30 %	0.38 A	Shielded	Surface Mount	680 mOhm	100 kHz	Ferrite	22 µH	2.52 MHz 11	Nonstandard	31 MHz	Drum Core Wirewound	0.051 in	1.3 mm	320 mA	125 °C	-40 C
Bourns Inc. SRR3011-150YL	30 %	480 mA	Shielded	Surface Mount		100 kHz	Ferrite	15 µH	2.52 MHz 16	Nonstandard	37 MHz	Drum Core Wirewound	0.051 in	1.3 mm	380 mA	125 °C	-40 C	420 mOhm
Bourns Inc. SRR3011-1R5YL	30 %	1.6 A	Shielded	Surface Mount	55 mOhm	100 kHz	Ferrite	1.5 µH	7.96 MHz 11	Nonstandard	124 MHz	Drum Core Wirewound	0.051 in	1.3 mm	1.3 A	125 °C	-40 C
Bourns Inc. SRR3011-100YL	30 %	650 mA	Shielded	Surface Mount	280 mOhm	100 kHz	Ferrite	10 µH	2.52 MHz 18	Nonstandard	42 MHz	Drum Core Wirewound	0.051 in	1.3 mm	500 mA	125 °C	-40 C
Bourns Inc. SRR3011-2R5YL	30 %	1.2 A	Shielded	Surface Mount	85 mOhm	100 kHz	Ferrite	2.5 µH	7 7.96 MHz	Nonstandard	112 MHz	Drum Core Wirewound	0.051 in	1.3 mm	1 A	125 °C	-40 C
