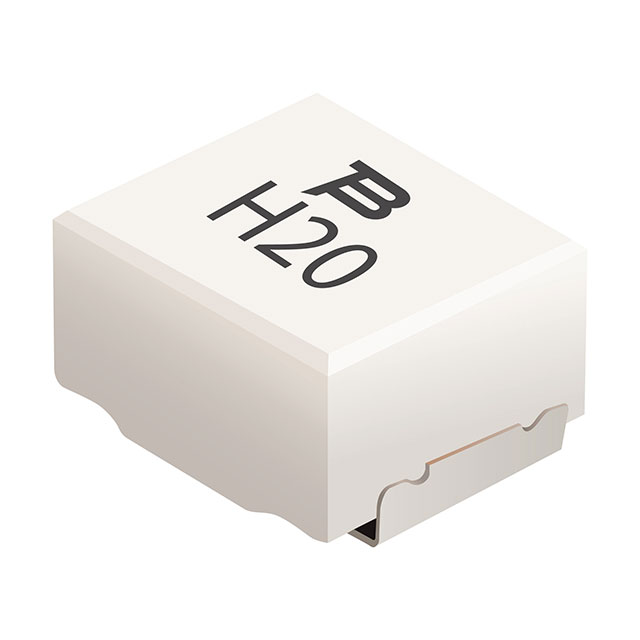

SF-2923HC-C Series
Manufacturer: Bourns Inc.
Beta
⌘K
SURFACE MOUNT FUSES 60VDC 40A HIGH-CURRENT
| Part | DC Cold Resistance | Fuse Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Breaking Capacity @ Rated Voltage | Package / Case | Voltage Rating - DC | Melting I²t | Approval Agency | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.001 Ohms | Board Mount (Cartridge Style Excluded) | Surface Mount | -55 C | 125 °C | 40 A | 4 mm | 7.3 mm | 0.157 " | 0.228 in | 0.287 " | 5.8 mm | 300 A | 2-SMD J-Lead | 60 VDC | 416 I²t | UL | Fast Blow |
