EDZ250 Series

Catalog

TERM BLK 2P SIDE ENT 5.08MM PCB

Part	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating	Screw Thread	Clamp Material - Plating	Housing Material	Number of Levels	Pitch	Pitch	Color	Current	Voltage	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Mating Orientation	Wire Termination	Positions Per Level

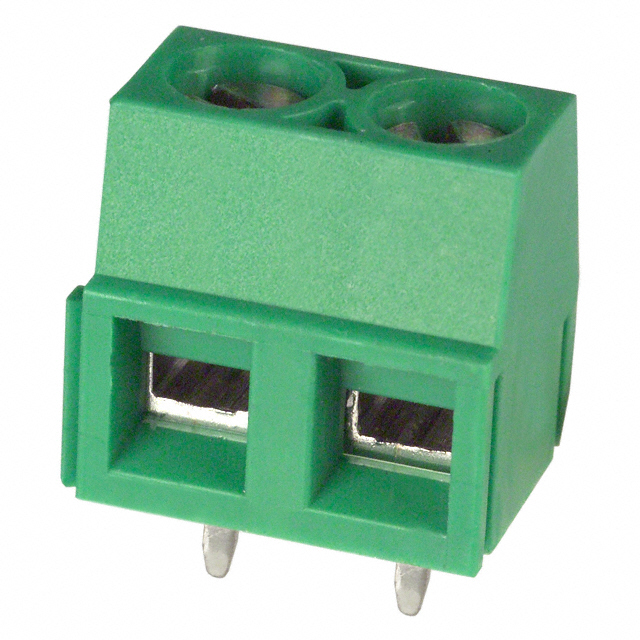

On Shore Technology Inc. EDZ250/2	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	Brass	M3	Copper	Polyamide (PA) Nylon	1	5.08 mm	0.2 in	Green	15 A	300 VDC	Through Hole	28 AWG	14 AWG	Horizontal with Board	Screw - Rising Cage Clamp	2
On Shore Technology Inc. EDZ250/6	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	Brass	M3	Copper	Polyamide (PA) Nylon	1	5.08 mm	0.2 in	Green	15 A	300 VDC	Through Hole	28 AWG	14 AWG	Horizontal with Board	Screw - Rising Cage Clamp	6

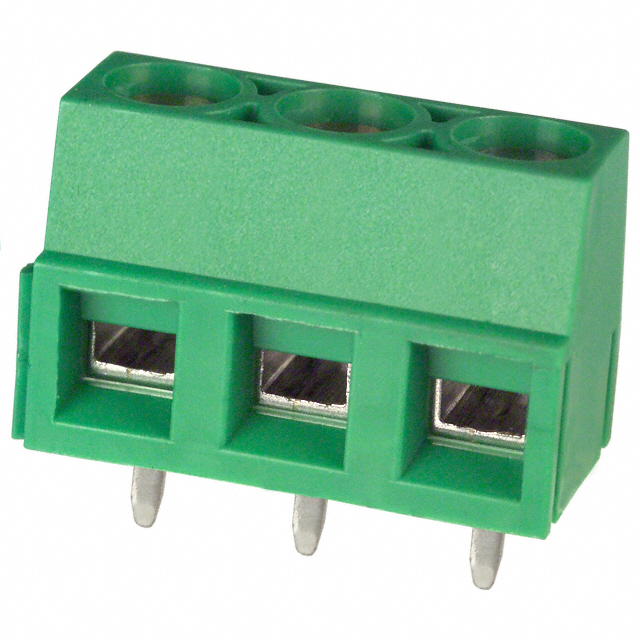

On Shore Technology Inc. EDZ250/3	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	Brass	M3	Copper	Polyamide (PA) Nylon	1	5.08 mm	0.2 in	Green	15 A	300 VDC	Through Hole	28 AWG	14 AWG	Horizontal with Board	Screw - Rising Cage Clamp	3
