BB16AH Series
Manufacturer: NKK Switches
Beta
⌘K
PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON
| Part | Electrical Life | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Type | Actuator Marking | Mounting Type | Current Rating (Amps) | Features | Voltage Rating - DC | Voltage Rating - AC | Actuator Type | Switch Function | Color - Actuator/Cap | Circuit | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 25000 Steps | 85 °C | -30 ░C | Standard | No Marking | Right Angle Through Hole | 0.4 VA | Antistatic | 28 V | 28 V | Button Round | On-On | White | SPDT | PC Pin |

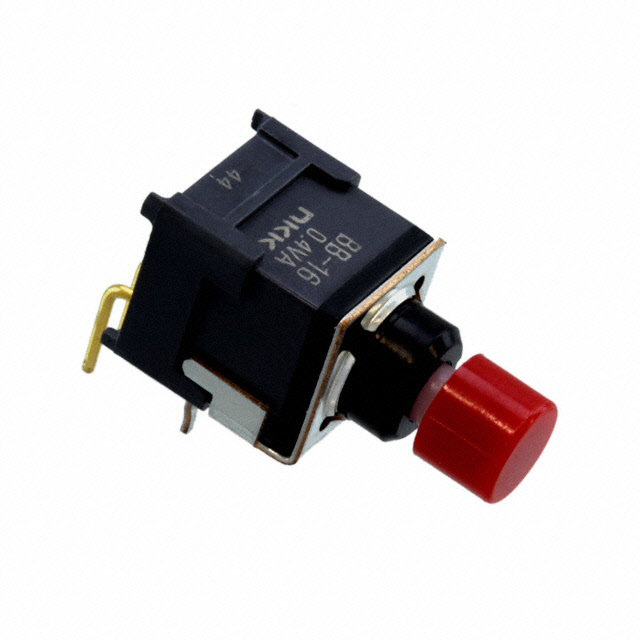

 NKK Switches | 25000 Steps | 25000 Steps | 85 °C | -30 ░C | Standard | No Marking | Right Angle Through Hole | 0.4 VA | Antistatic | 28 V | 28 V | Button Round | On-On | Red | SPDT | PC Pin |

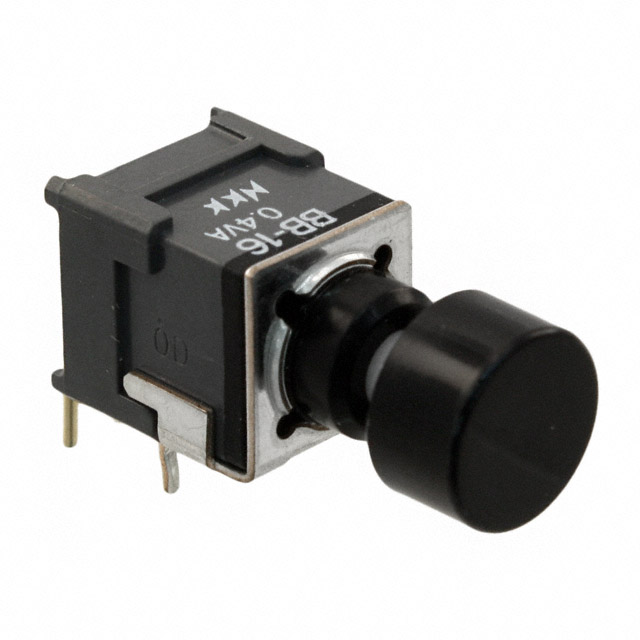

 NKK Switches | 25000 Steps | 25000 Steps | 85 °C | -30 ░C | Standard | No Marking | Right Angle Through Hole | 0.4 VA | Antistatic | 28 V | 28 V | Button Round | On-On | Black | SPDT | PC Pin |
