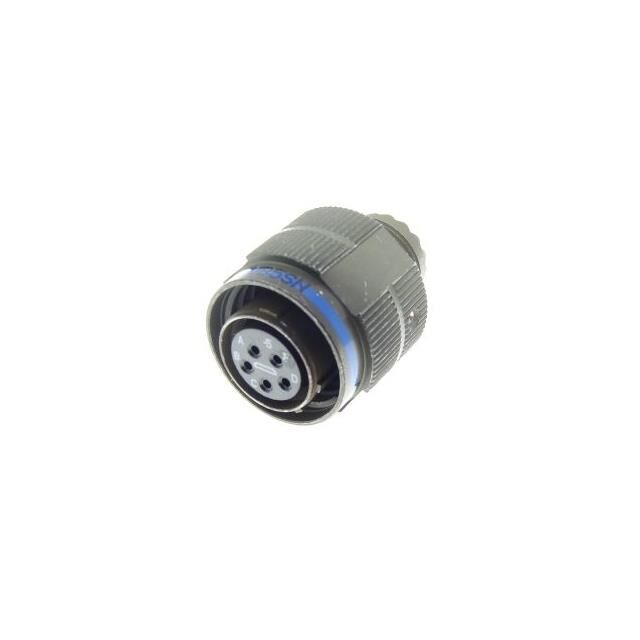

D38999/24WA Series
Manufacturer: Conesys
Beta
⌘K
CONN RCPT FMALE 6POS GOLD CRIMP
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material | Contact Material | Applications | Orientation | Shell Material | Qualification | Color | Voltage Rating | Fastening Type | Mounting Feature | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Termination | Grade | Material Flammability Rating | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shell Size, MIL | Shielding | Shell Finish | Ingress Protection | Primary Material | Connector Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Conesys | 50 µin | 1.27 µm | Thermoplastic | Copper Alloy | Aerospace Marine Military | N (Normal) | Aluminum Alloy | MIL-DTL-38999 Series III | Olive Drab | 500 VAC | Threaded | Bulkhead - Front Side Nut | 6 | -65 ░C | 125 °C | Gold | Crimp | Military | UL94 V-0 | 35 | 9 | A | Shielded | Olive Drab Cadmium | Waterproof | Metal | Receptacle Female Sockets | Panel Mount |
 Conesys | 50 µin | 1.27 µm | B | Aluminum Alloy | Olive Drab | Threaded | Bulkhead - Front Side Nut | 6 | -65 ░C | 175 °C | Gold | Crimp | 35 | 9 | Olive Drab Cadmium | Environment Resistant | Metal | Receptacle Female Sockets | Panel Mount | |||||||||
Conesys | 50 µin | 1.27 µm | A | Aluminum Alloy | Olive Drab | Threaded | Bulkhead - Front Side Nut | -65 ░C | 175 °C | Gold | Crimp | 98 | 9 | Olive Drab Cadmium | Environment Resistant | Metal | Receptacle Male Pins | Panel Mount |
