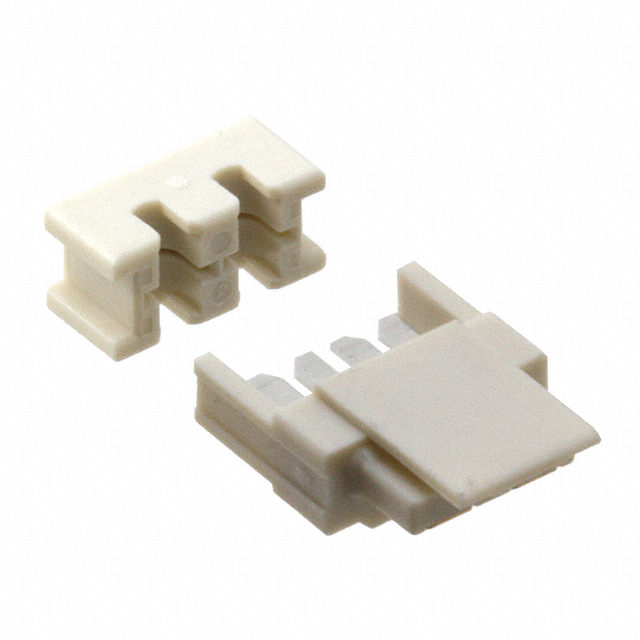

14-9159 Series
Manufacturer: KYOCERA AVX
Beta
⌘K
LIGHTING CONNECTORS IDC PLUG 4WAY 22AWG 5A 125V THRU WIRE
| Part | Current Rating (Amps) | Mating Cycles | Voltage Rating | Connector Type | Housing Material | Wire Gauge | Termination | Housing Color | Style | Number of Positions | Fastening Type | Contact Material | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 5 A | 10 | 125 VDC | Plug | Polyamide (PA46) Nylon 4/6 Glass Filled | 22 AWG | IDC | White | Board to Cable/Wire | 4 | Latch Lock | Phosphor Bronze | 0.118 in | 3 mm | 125 °C | -40 C | Free Hanging (In-Line) - Feed Through | Gold |
 KYOCERA AVX | 5 A | 10 | 125 VDC | Plug | Polyamide (PA46) Nylon 4/6 Glass Filled | 22 AWG | IDC | White | Board to Cable/Wire | 2 | Latch Lock | Copper Alloy | 0.118 in | 3 mm | 125 °C | -40 C | Free Hanging (In-Line) - Feed Through | Gold |
 KYOCERA AVX | Plug | Polyamide (PA46) Nylon 4/6 Glass Filled | 24 AWG | IDC | White | Board to Cable/Wire | 2 | Latch Lock | Copper Alloy | 0.118 in | 3 mm | 125 °C | -40 C | Free Hanging (In-Line) | Gold |
