IRSM516 Series
Manufacturer: INFINEON
Beta
⌘K

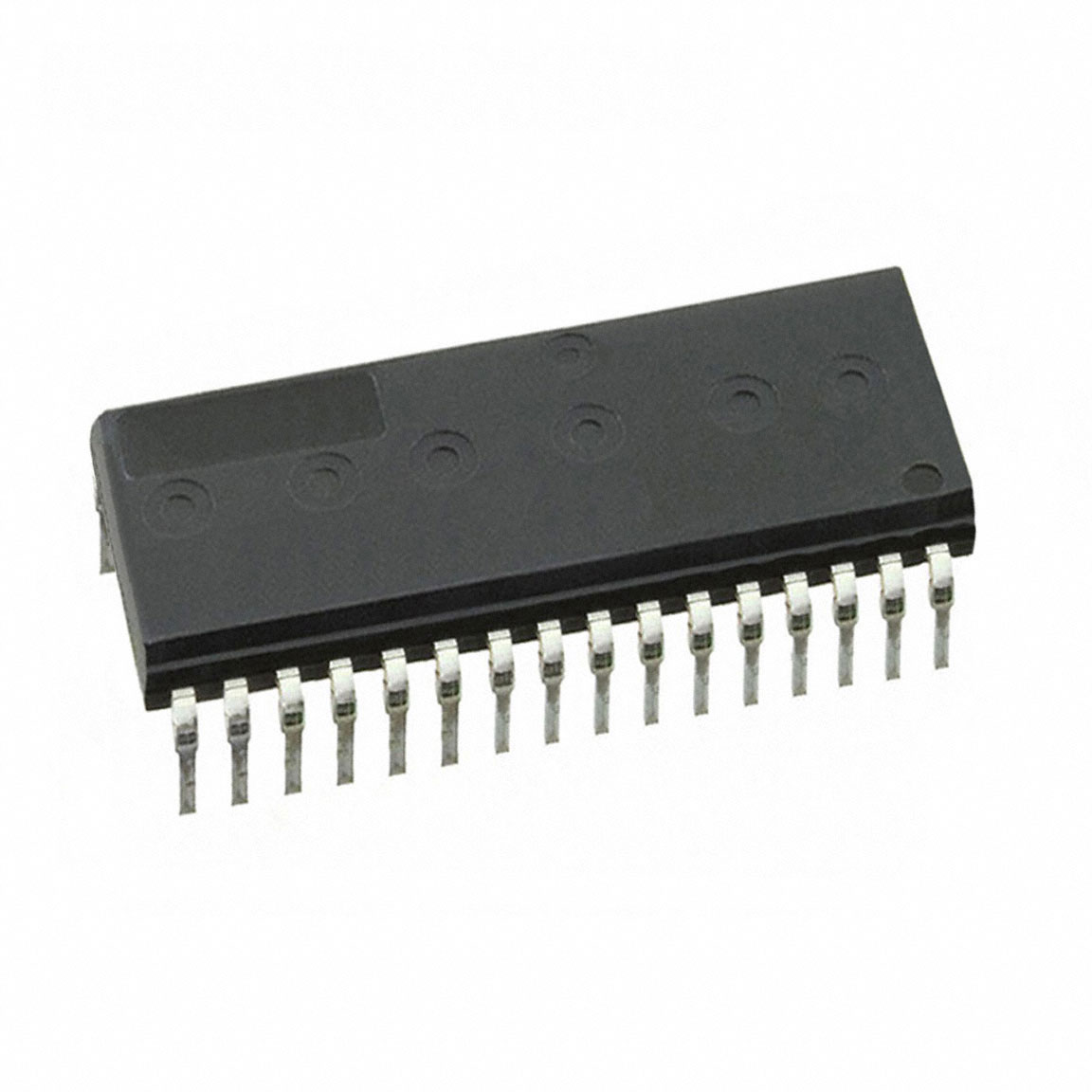

IC HALF BRIDGE DRIVER 4A 23DIP
| Part | Package / Case | Package / Case | Supplier Device Package | Interface | Features | Mounting Type | Applications | Load Type | Operating Temperature [Min] | Operating Temperature [Max] | Technology | Fault Protection | Current - Output / Channel | Voltage - Supply [Max] | Voltage - Supply [Min] | Output Configuration | Current - Peak Output | Voltage - Load [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 0.551 in 14 mm | 23-PowerDIP Module | 23-DIPA | Logic | Bootstrap Circuit | Through Hole | AC Motors | Inductive | -40 °C | 150 °C | IGBT | UVLO | 4 A | 16.5 V | 13.5 V | Half Bridge (3) | 15 A | 480 V |
 INFINEON | 23-PowerSMD Module | 23-SOP | Logic | Bootstrap Circuit | Surface Mount | AC Motors | Inductive | -40 °C | 150 °C | IGBT | UVLO | 4 A | 16.5 V | 13.5 V | Half Bridge (3) | 15 A | 480 V |
