SM11B-GH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

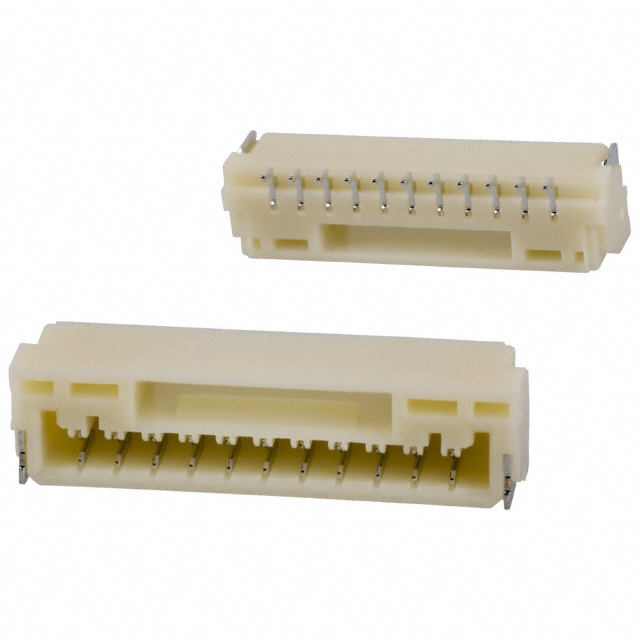

CONN HEADER SMD R/A 11POS 1.25MM
| Part | Insulation Color | Number of Positions Loaded | Contact Type | Contact Finish - Post | Connector Type | Number of Rows | Features | Termination | Voltage Rating | Insulation Material | Style | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Fastening Type | Contact Material | Contact Shape | Shrouding | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | All | Outer Shroud Contact | Tin | Header | 1 | Solder Retention | Solder | 50 V | Nylon 9T Polyamide (PA9T) | Board to Cable/Wire | 11 | 0.049 in | 1.25 mm | 4.25 mm | 0.167 " | Locking Ramp | Phosphor Bronze | Rectangular | Shrouded - 4 Wall | UL94 V-0 | 85 °C | -25 °C | Right Angle Surface Mount |
