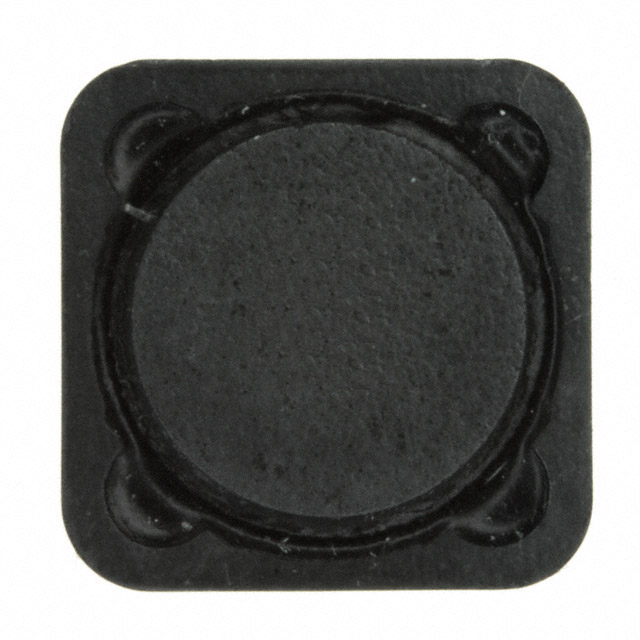

SPD125/R Series
Manufacturer: Delevan
Beta
⌘K
POWER INDUCTORS - SMD 100UH 20% .21OHM SHIELDED CHOKE SMT
| Part | Inductance Frequency - Test | Material - Core | Tolerance | Type | Inductance | DC Resistance (DCR) [Max] | Shielding | Current - Saturation (Isat) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Height - Seated (Max) | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Current Rating (Amps) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delevan | 1 kHz | Ferrite | 20 % | Drum Core Wirewound | 100 µH | 210 mOhm | Shielded | 1.3 A | 12 mm | 0.472 in | 0.472 " | 12 mm | 6 mm | 0.236 " | -55 C | 125 °C | Surface Mount | 1.3 A | Nonstandard |
Delevan | 1 kHz | Ferrite | 20 % | Drum Core Wirewound | 330 µH | Shielded | 700 mA | 12 mm | 0.472 in | 0.472 " | 12 mm | 6 mm | 0.236 " | -55 C | 125 °C | Surface Mount | 700 mA | Nonstandard |
