NPPN121 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

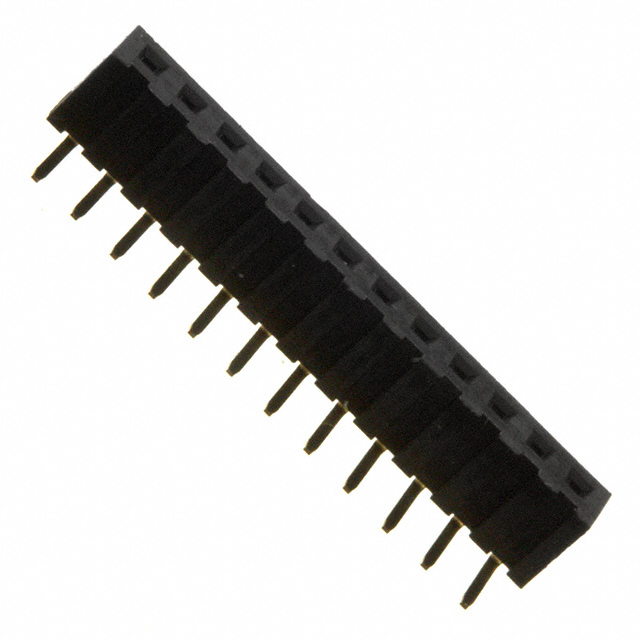

CONN HDR 12P 0.079 GOLD PCB R/A
| Part | Contact Shape | Contact Material | Insulation Material | Contact Finish Thickness - Post | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Connector Type | Number of Rows | Contact Type | Termination | Mounting Type | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Fastening Type | Contact Finish - Post | Insulation Color | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Flash | 2 A | 0.079 " | 2 mm | Flash | Header | 1 | Female Socket | Solder | Right Angle Through Hole | 0.122 in | 3.1 mm | 12 | All | -40 C | 105 ░C | UL94 V-0 | Push-Pull | Gold | Black | Gold |
