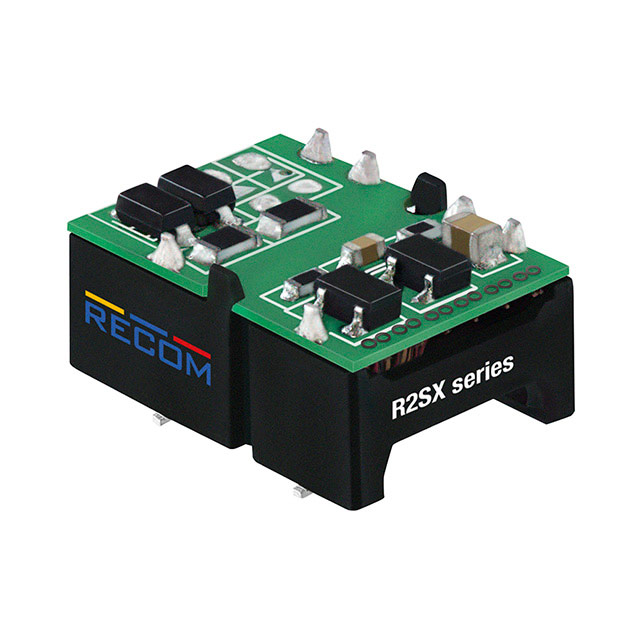

R2SX Series

Catalog

ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 1:1, 2 W, 1 OUTPUT, 5 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Applications	Features	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Isolation	Type	Approval Agency	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Number of Outputs
Recom Power R2SX-2405-R	-40 °C	100 °C	85 %	ITE (Commercial)	OCP	21.6 V	400 mA	26.4 V	2 W	1000 V	Isolated Module	CB cURus	Surface Mount	10-SMD Module 6 Leads	0.42 "	15.2 mm	0.31 "	0.6 "	10.7 mm	8 mm	5 V	1

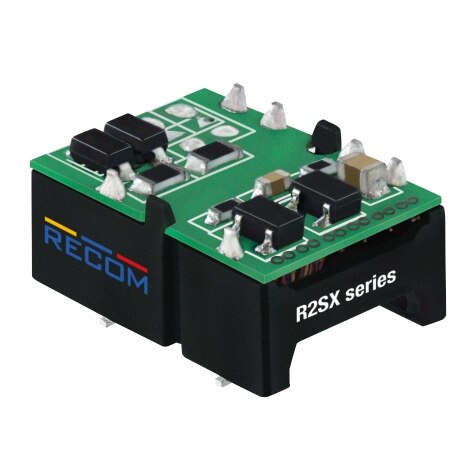

Recom Power R2SX-053.3/H-R	-40 °C	100 °C	79 %	ITE (Commercial)	OCP	4.5 V	606 mA	5.5 V	2 W	3000 V	Isolated Module	CB cURus	Surface Mount	10-SMD Module 6 Leads	0.42 "	15.2 mm	0.31 "	0.6 "	10.7 mm	8 mm	3.3 V	1
Recom Power R2SX-2415-TRAY	-40 °C	100 °C	85 %	ITE (Commercial)	OCP	21.6 V	133 mA	26.4 V	2 W	1000 V	Isolated Module	CB cURus	Surface Mount	10-SMD Module 6 Leads	0.42 "	15.2 mm	0.31 "	0.6 "	10.7 mm	8 mm	15 V	1
Recom Power R2SX-2405/H-TRAY	-40 °C	100 °C	85 %	ITE (Commercial)	OCP	21.6 V	400 mA	26.4 V	2 W	3000 V	Isolated Module	CB cURus	Surface Mount	10-SMD Module 6 Leads	0.42 "	15.2 mm	0.31 "	0.6 "	10.7 mm	8 mm	5 V	1
Recom Power R2SX-053.3-TRAY	-40 °C	100 °C	79 %	ITE (Commercial)	OCP	4.5 V	606 mA	5.5 V	2 W	1000 V	Isolated Module	CB cURus	Surface Mount	10-SMD Module 6 Leads	0.42 "	15.2 mm	0.31 "	0.6 "	10.7 mm	8 mm	3.3 V	1
Recom Power R2SX-1205/H-R	-40 C	75 ░C	84 %	ITE (Commercial)		10.8 V	400 mA	14.2 V	2 W	3000 V	Isolated Module	CB cURus	Surface Mount	10-SMD Module 6 Leads	0.42 "	15.2 mm	0.31 "	0.6 "	10.7 mm	8 mm	5 V	1
Recom Power R2SX-2424-R	-40 °C	100 °C	86 %	ITE (Commercial)	OCP	21.6 V	84 mA	26.4 V	2 W	1000 V	Isolated Module	CB cURus	Surface Mount	10-SMD Module 6 Leads	0.42 "	15.2 mm	0.31 "	0.6 "	10.7 mm	8 mm	24 V	1
Recom Power R2SX-1205-R	-40 C	75 ░C	84 %	ITE (Commercial)		10.8 V	400 mA	14.2 V	2 W	1000 V	Isolated Module	CB cURus	Surface Mount	10-SMD Module 6 Leads	0.42 "	15.2 mm	0.31 "	0.6 "	10.7 mm	8 mm	5 V	1
Recom Power R2SX-2405/H-R	-40 °C	100 °C	85 %	ITE (Commercial)	OCP	21.6 V	400 mA	26.4 V	2 W	3000 V	Isolated Module	CB cURus	Surface Mount	10-SMD Module 6 Leads	0.42 "	15.2 mm	0.31 "	0.6 "	10.7 mm	8 mm	5 V	1
Recom Power R2SX-053.3/H-TRAY	-40 °C	100 °C	79 %	ITE (Commercial)	OCP	4.5 V	606 mA	5.5 V	2 W	3000 V	Isolated Module	CB cURus	Surface Mount	10-SMD Module 6 Leads	0.42 "	15.2 mm	0.31 "	0.6 "	10.7 mm	8 mm	3.3 V	1
