OSTVA06 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

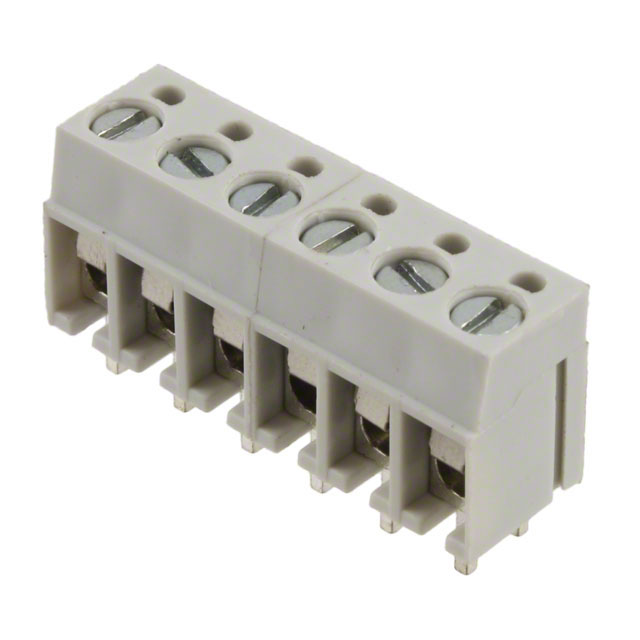

TERM BLK 6POS SIDE ENTRY 5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Screw | Torque - Screw | Housing Material | Screw Material - Plating | Clamp Material - Plating [custom] | Screw Thread | Wire Gauge [Min] | Wire Gauge [Max] | Wire Termination | Voltage | Positions Per Level | Mating Orientation | Pitch | Pitch | Current | Mounting Type | Color | Features | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Thermoplastic | Steel - Zinc Plated | Stainless Steel | M3 | 14 AWG | 22 AWG | Screw - Leaf Spring Wire Guard | 300 VDC | 6 | Horizontal with Board | 0.197 in | 5 mm | 15 A | Through Hole | Gray | Interlocking (Side) | 1 |
 On Shore Technology Inc. | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Thermoplastic | Steel - Zinc Plated | Stainless Steel | M3 | 14 AWG | 22 AWG | Screw - Leaf Spring Wire Guard | 300 VDC | 6 | Horizontal with Board | 0.197 in | 5 mm | 15 A | Through Hole | Blue | Interlocking (Side) | 1 |
