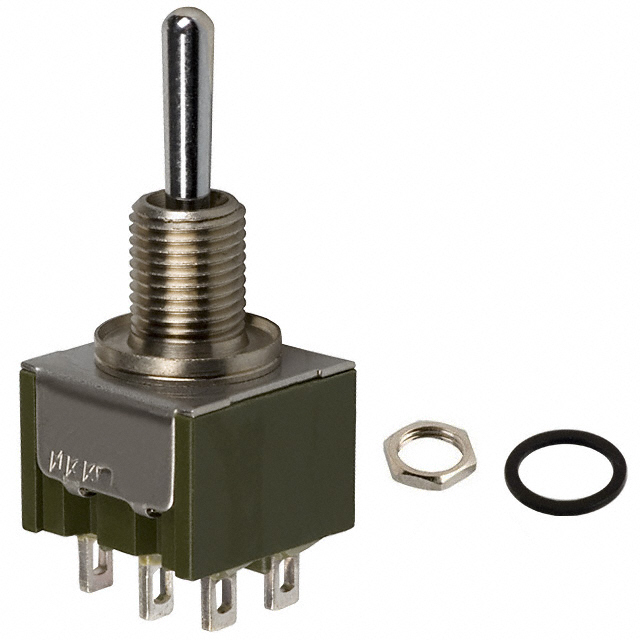

M2023SD Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Actuator Material | Electrical Life | Actuator Type | Voltage Rating - DC | Illumination | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Current Rating (Amps) | Actuator Length [x] | Circuit | Switch Function | Mounting Type | Ingress Protection | Panel Cutout Dimensions [diameter] | Features | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Chrome Plated | 25000 Steps | Standard Round with Cap | 30 V | Non-Illuminated | Solder Lug | 85 °C | -30 ░C | 125 V | 3 A 6 A | 13.5 mm | DPDT | On-Off-On | Panel Mount | IP67 - Dust Tight Waterproof | 6.5 mm | Black Cap | 1/4-40 |
 NKK Switches | Brass Chrome Plated | 25000 Steps | Standard Round | 30 V | Non-Illuminated | Solder Lug | 85 °C | -30 ░C | 125 V | 3 A 6 A | DPDT | On-Off-On | Panel Mount | IP67 - Dust Tight Waterproof | 6.5 mm | Epoxy Sealed Terminals | 1/4-40 |
