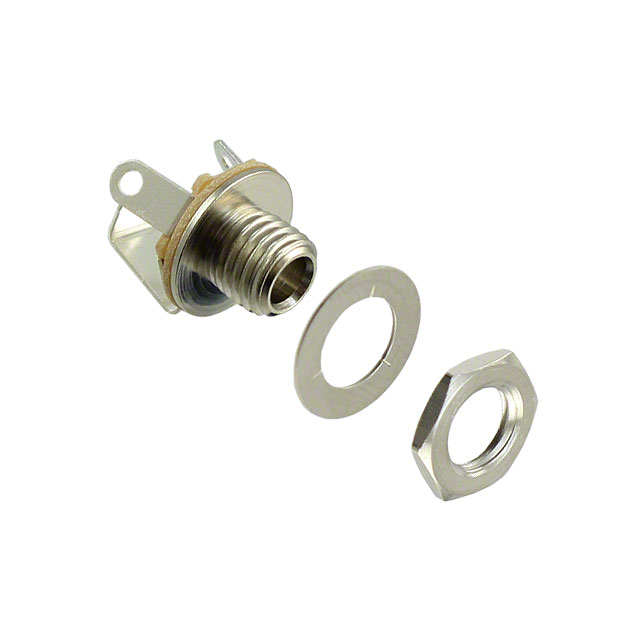

Phone Connectors 3.5mm MONO PNL JACK
Phone Connectors 3.5mm MONO PNL JACK
| Part | Panel Hole Size | Panel Hole Size | Body Material | Housing Material | Body Color | Contact Material | Includes | Thread Size | Thread Size | Voltage - Rated | Contact Material - Plating | Current Rating (Amps) | Actual Diameter [diameter] | Actual Diameter [diameter] | Connector Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Signal Lines | Mounting Type | Features | Internal Switch(s) | Termination | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Gender | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 6.35 mm | 0.25 in | Copper Alloy | Copper Alloy | Silver | Copper Alloy | 1 Nut 1 Washer 3 pcs - 1 Connector | 32 threads per inch | 1/4" | 48 VDC | Tin | 0.25 A | 0.142 in | 3.6 mm | Phone Jack | 2 | 2 | Mono | Panel Mount | Mounting Hardware Thread Lock | Solder Eyelet(s) | 0.125 in | 3.5 mm | 0.141 in | Female | Unshielded |
