ADN20 Series

Catalog

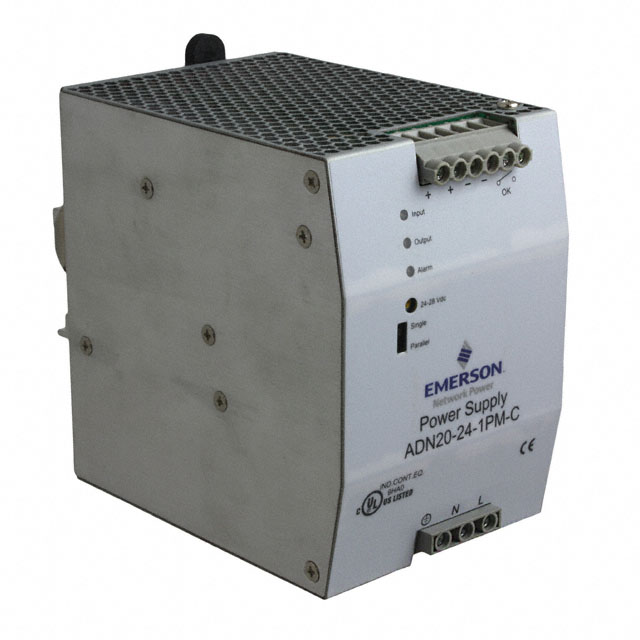

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 480 W, 24 VDC, 20 A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Power (Watts)	Features	Number of Outputs	Current - Output (Max) [Max]	Standard Number	Voltage - Output 1	Efficiency	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Approval Agency	DC Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	DC Voltage - Input (Min) [Min]	Input Type
ARTESYN / Advanced Energy ADN20-24-1PM-C	70 °C	-25 °C	Hazardous Locations Industrial ITE (Commercial)	480 W	Adjustable Output IP20 Load Sharing PFC Universal Input	1	20 A	508 60950-1 Class I Div 2	24 V	90 %	264 VAC	85 VAC	CE cULus UL	375 V	4.85 "	126 mm	3.42 in	87 mm	123 mm	4.96 in	90 V	AC or DC
