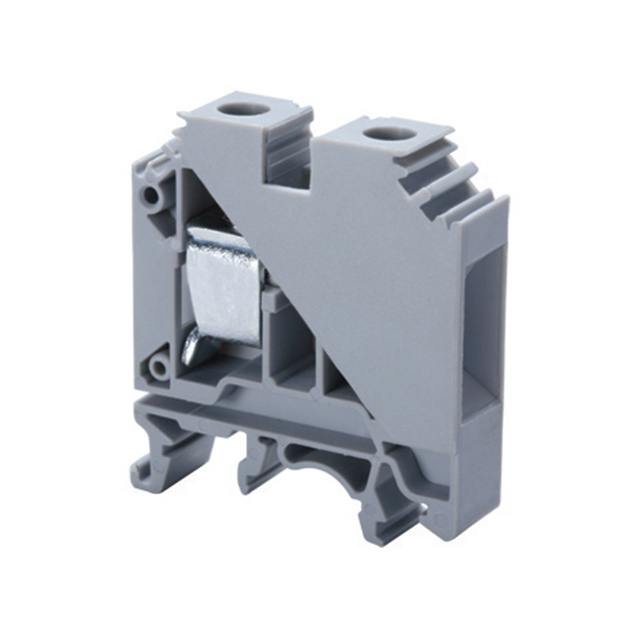

CTS16 Series
Manufacturer: Altech Corporation
Beta
⌘K
CONN TERM BLK FEED THRU 6-22AWG
| Part | Voltage - IEC | Terminal - Width [y] | Current - UL | Color | Number of Levels | Material - Insulation | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Stripping Length [x] | Voltage - UL | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] | Termination Style | Type | Number of Positions | Current - IEC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | 1 kV | 12 mm | 85 A | Gray | 1 | Polyamide (PA66) Nylon 6/6 | 4 AWG | 22 AWG | 12 mm | 600 V | 16 mm˛ | 0.2 mm˛ | Screw | Feed Through | 2 | 76 A |
