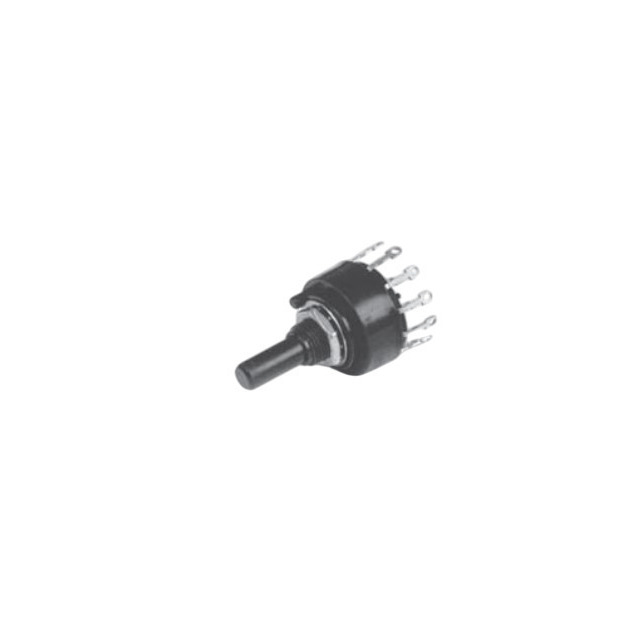

C5P0206 Series
Manufacturer: Electroswitch
Beta
⌘K
ROTARY SWITCHES 02-06POS/2P/1SECTION NON-SHORTING PC TER
| Part | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Contact Finish | Depth Behind Panel [z] | Actuator Type | Number of Decks [custom] | Mounting Type | Angle of Throw | Number of Positions [Min] | Number of Positions [Max] | Current Rating (Amps) | Voltage Rating - DC | Circuit per Deck | Index Stops | Contact Material | Termination Style | Features | Actuator Length [x] | Number of Poles per Deck | Contact Timing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | 125 V | Silver | 14.1 mm | Flatted (6.35mm Dia) | 1 | Panel Mount Through Hole | 30 ° | 2 | 6 | 1 A | 28 V | DP6T | Adjustable | Brass | PC Pin | Sealed | 14.29 mm | 2 | Non-Shorting (BBM) |
