1462043 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

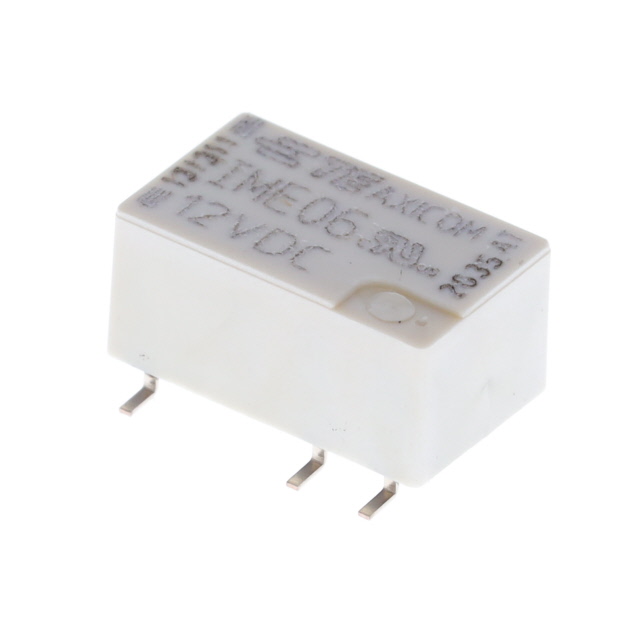

SIGNAL RELAY 12VDC 2A DPST-NO( (10MM 7.48MM 5.65MM)) SMD MEDICAL
| Part | Coil Resistance | Must Operate Voltage | Coil Current | Coil Type | Relay Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Contact Material | Contact Form | Release Time | Mounting Type | Must Release Voltage | Load - Max Switching | Seal Rating | Switching Voltage [Max] | Contact Rating (Current) | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1030 Ohms | 9 VDC | 11.7 mA | Non Latching | Telecom | Gull Wing | 85 °C | -40 C | 3 ms | Gold (Au) Palladium (Pd) Ruthenium (Ru) | DPST-NO (2 Form A) | 3 ms | Surface Mount | 1.2 VDC | 440 W 500 VA | Sealed - Hermetically | 220 VDC 250 VAC | 2 A | 12 VDC |
 TE Connectivity AMP Connectors | 178 Ohms | 3.75 VDC | 28.1 mA | Non Latching | Telecom | PC Pin | 85 °C | -40 C | 3 ms | Gold (Au) Palladium (Pd) Ruthenium (Ru) | DPST-NO (2 Form A) | 3 ms | Through Hole | 0.5 VDC | 440 W 500 VA | Sealed - Hermetically | 220 VDC 250 VAC | 2 A | 5 VDC |
TE Connectivity AMP Connectors | 145 Ohms | 3.38 VDC | 31.1 mA | Non Latching | Telecom | PC Pin | 85 °C | -40 C | 3 ms | Gold (Au) Palladium (Pd) Ruthenium (Ru) | DPST-NO (2 Form A) | 3 ms | Through Hole | 0.45 VDC | 440 W 500 VA | Sealed - Hermetically | 220 VDC 250 VAC | 2 A | 4.5 VDC |
 TE Connectivity AMP Connectors | 1030 Ohms | 9 VDC | 11.7 mA | Non Latching | Telecom | PC Pin | 85 °C | -40 C | 3 ms | Gold (Au) Palladium (Pd) Ruthenium (Ru) | DPST-NO (2 Form A) | 3 ms | Through Hole | 1.2 VDC | 440 W 500 VA | Sealed - Hermetically | 220 VDC 250 VAC | 2 A | 12 VDC |
 TE Connectivity AMP Connectors | 178 Ohms | 3.75 VDC | 28.1 mA | Non Latching | Telecom | Gull Wing | 85 °C | -40 C | 3 ms | Gold (Au) Palladium (Pd) Ruthenium (Ru) | DPST-NO (2 Form A) | 3 ms | Surface Mount | 0.5 VDC | 440 W 500 VA | Sealed - Hermetically | 220 VDC 250 VAC | 2 A | 5 VDC |
