202F211 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BLOW-MOLDED PARTS

Part	Large Recovered Length	Large Recovered Length	Small Diameter Supplied	Small Diameter Supplied	Material	Total Length Recovered	Total Length Recovered	Color	Type	Small Diameter Recovered	Small Diameter Recovered	Shell Size - Insert	Small Recovered Length	Small Recovered Length	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Total Length Recovered [x]	Total Length Recovered [x]	Shelf Life Start	Shelf Life	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Recovered Length [x]	Small Recovered Length [x]	Features
TE Connectivity AMP Connectors 202F211-50-22-0-CS8474	0.46 in	11.68 mm	0.68 in	17.27 mm	Elastomer Fluid Resistant	3 in	76.2 mm	Black	Boot	6.6 mm	0.26 in	11	56.64 mm	2.23 in	0.39 in	9.91 mm

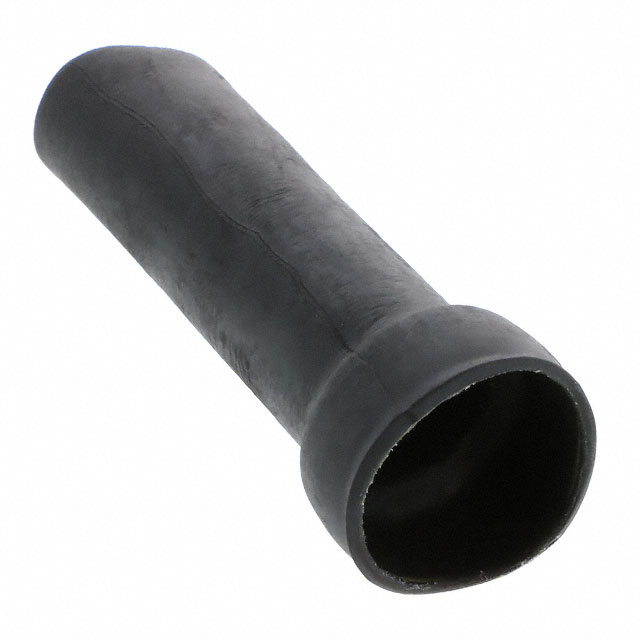

TE Connectivity AMP Connectors 202F211-51/86-0	0.46 in	11.68 mm	0.68 in	17.27 mm	VPB Flexible			Black	Boot	6.6 mm	0.26 in	11	86.36 mm	3.4 in	0.39 in	9.91 mm	4.17 in	105.92 mm
TE Connectivity AMP Connectors 202F211-51-07/86-0	0.461 in	11.71 mm			EPB Flexible			Black	Boot	11.71 mm	0.461 in	11			0.39 in	9.91 mm	1.858 in	47.19 mm	Date of Manufacture	15 Months	17.3 mm	0.681 in	0.941 in	23.9 mm	1.118 "	28.4 mm
TE Connectivity AMP Connectors 202F211-50-0-CS5326	3.4 in	86.36 mm	0.68 in	17.27 mm	VPB Flexible			Black	Boot	6.6 mm	0.26 in	11	11.68 mm	0.46 in	0.94 in	23.88 mm	4.17 in	105.92 mm
TE Connectivity AMP Connectors 202F211-71/42-0	0.461 in	11.71 mm			Polyolefin (PO) Flexible	4.169 in	105.89 mm	Black	Boot	6.6 mm	0.26 in	11	86.41 mm	3.402 "	0.39 in	9.91 mm					17.3 mm	0.681 in	0.941 in	23.9 mm			Adhesive Lip
TE Connectivity AMP Connectors 202F211-71/180-0	3.4 in	86.36 mm	0.68 in	17.27 mm	Polyolefin (PO) Flexible			Black	Boot	6.6 mm	0.26 in	11	11.68 mm	0.46 in	0.94 in	23.88 mm	4.17 in	105.92 mm		60 Months
TE Connectivity AMP Connectors 202F211-51-02-0-CS5422	0.46 in	11.68 mm	0.68 in	17.27 mm	Polyolefin (PO) Flexible	3 in	76.2 mm	Black	Boot	6.6 mm	0.26 in	11	56.64 mm	2.23 in	0.39 in	9.91 mm			Date of Manufacture	15 Months
TE Connectivity AMP Connectors 202F211-50-22-0	0.46 in	11.68 mm	0.68 in	17.27 mm	Elastomer Fluid Resistant	3 in	76.2 mm	Black	Boot	6.6 mm	0.26 in	11	56.64 mm	2.23 in	0.39 in	9.91 mm
TE Connectivity AMP Connectors 202F211-51/164-0-CS8112	3.4 in	86.36 mm	0.68 in	17.27 mm	EPB Flexible			Black	Boot	6.6 mm	0.26 in	11	11.68 mm	0.46 in	0.94 in	23.88 mm	4.17 in	105.92 mm
TE Connectivity AMP Connectors 202F211-51/164-0-CS8064	3.4 in	86.36 mm	0.68 in	17.27 mm	EPB Flexible			Black	Boot	6.6 mm	0.26 in	11	11.68 mm	0.46 in	0.94 in	23.88 mm	4.17 in	105.92 mm
