0321-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

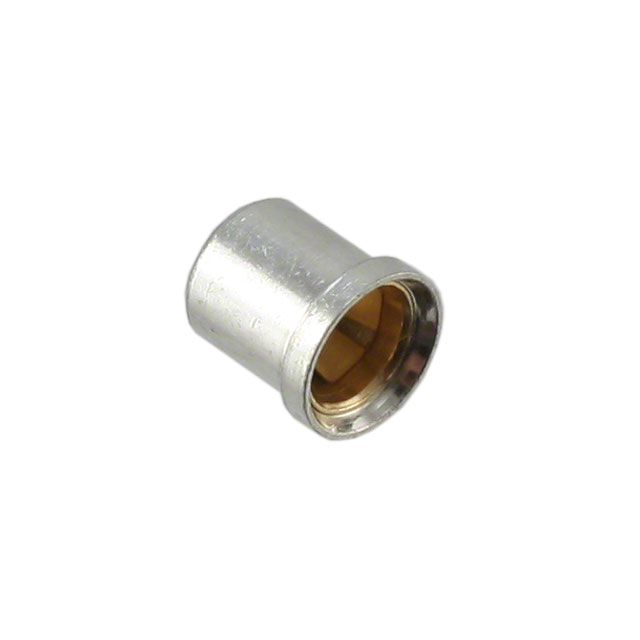

CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Socket Depth | Socket Depth | Contact Material | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Contact Finish Thickness | Contact Finish Thickness | Tail Type | Mounting Hole Diameter | Mounting Hole Diameter | Contact Finish | Length - Overall [x] | Length - Overall [x] | Features | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Solder | 3.96 mm | 0.156 " | 4.19 mm | 0.165 in | Beryllium Copper | 0.102 " | 2.13 mm | 2.59 mm | 0.084 " | 30 Áin | 0.76 Ám | No Tail | 0.144 " | 3.66 mm | Gold | 0.165 in | 4.19 mm | |||
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Solder | 3.96 mm | 0.156 " | 4.19 mm | 0.165 in | Beryllium Copper | 0.102 " | 2.13 mm | 2.59 mm | 0.084 " | 30 Áin | 0.76 Ám | No Tail | 0.144 " | 3.66 mm | Gold | 0.165 in | 4.19 mm | Knockout Bottom (Organic Fiber Plug®) | 0.122 in | 3.1 mm |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Solder | 3.96 mm | 0.156 " | 4.19 mm | 0.165 in | Beryllium Copper | 0.102 " | 2.13 mm | 2.59 mm | 0.084 " | 30 Áin | 0.76 Ám | No Tail | 0.144 " | 3.66 mm | Gold | 0.165 in | 4.19 mm | |||
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Solder | 3.96 mm | 0.156 " | 4.19 mm | 0.165 in | Beryllium Copper | 0.102 " | 2.13 mm | 2.59 mm | 0.084 " | 10 Áin | 0.25 Ám | No Tail | 0.144 " | 3.66 mm | Gold | 0.165 in | 4.19 mm | |||
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Solder | 3.96 mm | 0.156 " | 4.19 mm | 0.165 in | Beryllium Copper | 0.102 " | 2.13 mm | 2.59 mm | 0.084 " | 30 Áin | 0.76 Ám | No Tail | 0.144 " | 3.66 mm | Tin | 0.165 in | 4.19 mm |
