LPD3015 Series
Manufacturer: Coilcraft
Beta
⌘K

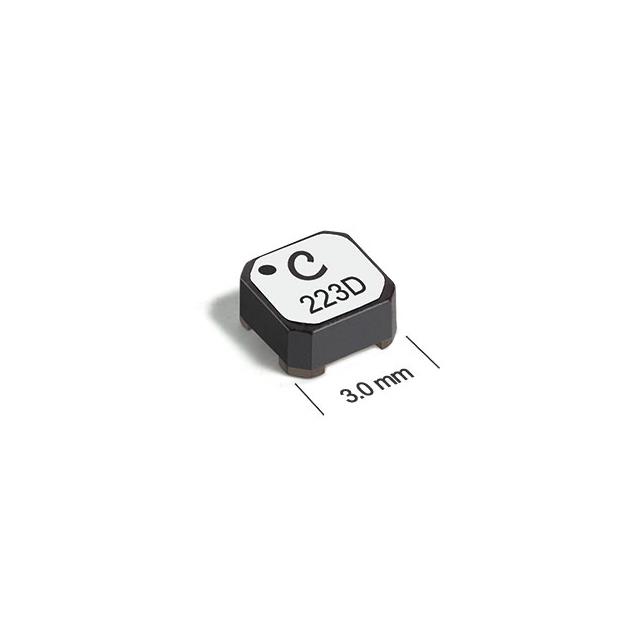

COUPLED INDUCTORS LPD3015 LOW PROFILE 20% 790MA 622MOHMS
| Part | Type | DC Resistance (DCR) [Max] | Current - Saturation (Isat) | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Frequency - Self Resonant | Inductance | Height - Seated (Max) [Max] | Height - Seated (Max) | Material - Core | Inductance Frequency - Test | Operating Temperature [Max] | Operating Temperature [Min] | Inductance - Connected In Parallel | Tolerance | Mounting Type | Shielding | Current Rating - Parallel | Package / Case | Current Saturation - Series | Current Saturation - Parallel | DC Resistance (DCR) | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coilcraft | Wirewound | 622 mOhm | 790 mA | 690 mA | 3 mm | 0.118 in | 3 mm | 0.118 " | 58 MHz | 6.8 µH | 0.059 " | 1.5 mm | Ferrite | 100 kHz | 85 °C | -40 C | 6.8 µH | 20 % | Surface Mount | Shielded | 690 mA | Nonstandard | 790 mA | 790 mA | |||
Coilcraft | Wirewound | 1.8 A | 1.2 A | 3 mm | 0.118 in | 3 mm | 0.118 " | 140 MHz | 1.5 µH | 0.059 " | 1.5 mm | Ferrite | 100 kHz | 85 °C | -40 C | 1.5 µH | 20 % | Surface Mount | Shielded | 1.2 A | Nonstandard | 1.8 A | 1.8 A | 204 mOhm | 102 mOhm | 408 mOhm | |
 Coilcraft | 85 °C | -40 C | 1.8 µH | 20 % | Surface Mount | Shielded | 1.1 A | Nonstandard | 1.6 A | 1.6 A |
