BPJR04 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

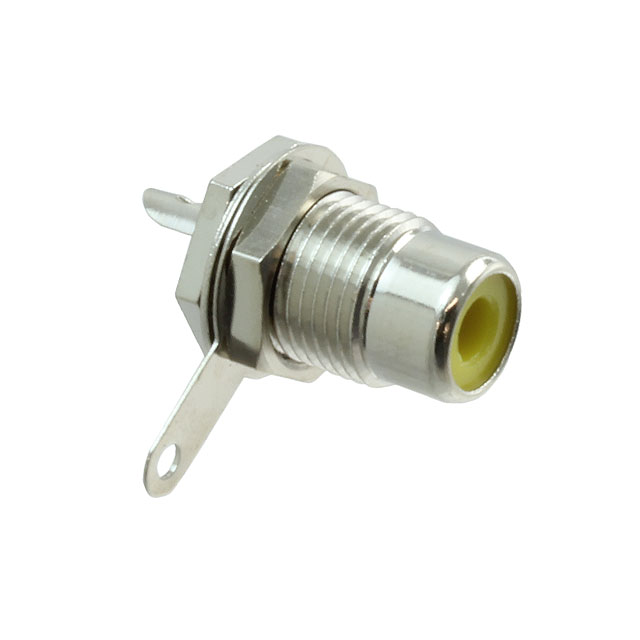

RCA PANEL MOUNT JACK, REAR MOUNT, YELLOW INSULATOR, GOLD FINISH
| Part | Thread Size | Contact Material | Body Color | Contact Material - Plating | Includes | Panel Hole Size | Panel Hole Size | Body Material | Actual Diameter [diameter] | Actual Diameter [diameter] | Insulation Color | Mounting Type | Internal Switch(s) | Gender | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Shielding | Termination | Industry Recognized Mating Diameter [diameter] | Signal Lines | Features | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 3/8"-32 | Brass | Silver | Gold | 1 Nut 1 Washer 3 pcs - 1 Connector | 9.52 mm | 0.375 in | Brass | 0.134 in 0.325 in | 3.4 mm 8.25 mm | Yellow | Panel Mount | Female | 2 | 2 | Unshielded | Solder Eyelet(s) | 3.2 mm 9 mm | Mono | Grounding Tab Mounting Hardware | Phono (RCA) Jack | |
 SWITCHCRAFT/CONXALL | 3/8"-32 | Brass | Silver | Nickel | 1 Nut 1 Washer 3 pcs - 1 Connector | 9.52 mm | 0.375 in | Brass | 0.134 in 0.325 in | 3.4 mm 8.25 mm | Yellow | Panel Mount | Female | 2 | 2 | Unshielded | Solder Eyelet(s) | 3.2 mm 9 mm | Mono | Grounding Tab Mounting Hardware | Phono (RCA) Jack |
