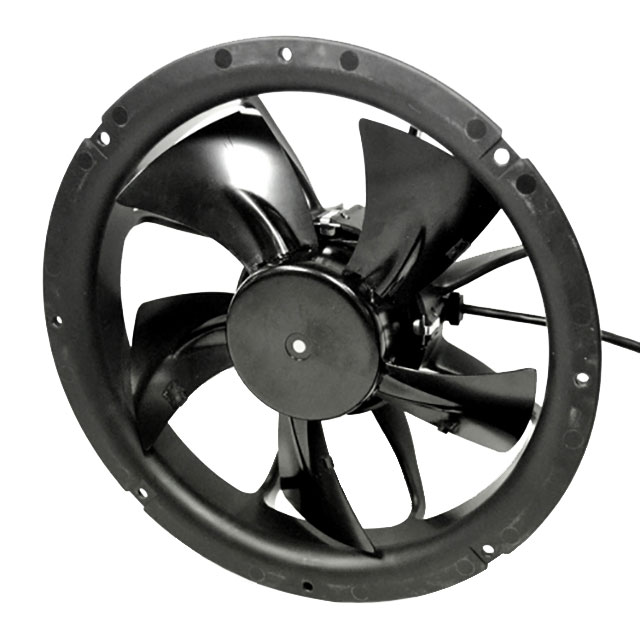

OA200EC Series

Catalog

AC FAN, BALL, 120MM, 3100RPM, 230V ROHS COMPLIANT: YES

Part	Material - Blade	Current Rating (Amps) [Min]	Current Rating (Amps) [Max]	Lifetime @ Temp.	Noise [Max]	Noise [Min]	Approval Agency	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Ingress Protection	Air Flow [Max]	Air Flow [Min]	Power (Watts)	Width [x]	Termination	RPM [Min]	RPM [Max]	Bearing Type	Size / Dimension [diameter]	Size / Dimension	Fan Type	Voltage - Rated	Static Pressure [Min]	Static Pressure [Max]	Static Pressure [Max]	Static Pressure [Min]
ORION FANS OA200EC-22-1WB	Metal	0.08 A	0.24 A	40000 Hrs	55 dB	44 dB	cURus TUV	997.9 g	2.2 lbs	50 °C	-25 °C	-25 °C	50 °C	Dual Speed Electronic Commutation (EC) Thermal Overload Protector (TOP)	IP55 - Dust Protected Water Resistant	12.88 m³/min 460 CFM	8.12 m³/min 290 CFM	8.5 W 27 W	76.1 mm	3 Wire Leads	1400 RPM	2200 RPM	Ball	250 mm	Round	Tubeaxial	230 VAC	69.7 Pa	0.46 in H2O	114.6 Pa	0.28 in H2O
ORION FANS OA200EC-11-1WB	Metal	0.13 A	0.4 A	40000 Hrs	55 dB	44 dB	cURus TUV	997.9 g	2.2 lbs	50 °C	-25 °C	-25 °C	50 °C	Dual Speed Electronic Commutation (EC) Thermal Overload Protector (TOP)	IP55 - Dust Protected Water Resistant	12.88 m³/min 460 CFM	8.12 m³/min 290 CFM		76.1 mm	3 Wire Leads	1400 RPM	2200 RPM	Ball	250 mm	Round	Tubeaxial	115 VAC	69.7 Pa	0.46 in H2O	114.6 Pa	0.28 in H2O
