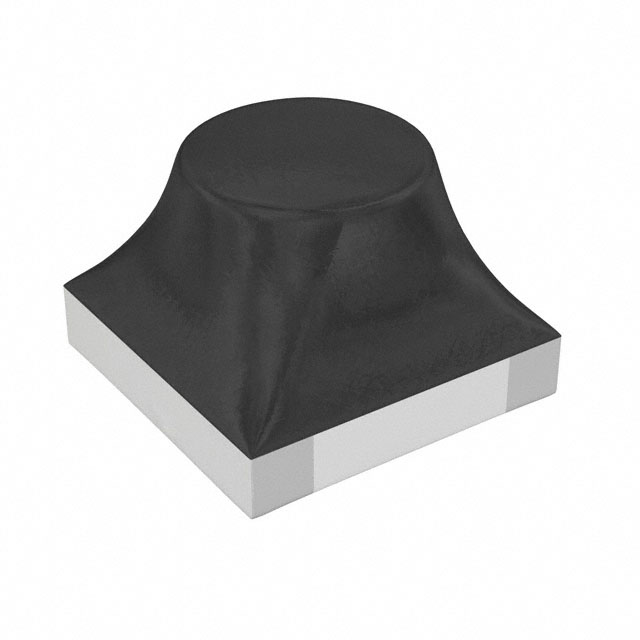

103/R Series

Manufacturer: Delevan

Catalog

RF INDUCTORS - SMD .47UH 10% .26OHM CHIP SMT RF IND

Part	Inductance Frequency - Test	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Shielding	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Self Resonant	Q @ Freq	Height - Seated (Max) [Max]	Height - Seated (Max)	DC Resistance (DCR)	Tolerance	Mounting Type	Material - Core	Current Rating (Amps)	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR) [Max]	Q @ Freq [custom]
Delevan 103-471KS	25 MHz	470 nH	0.1 in	0.1 "	2.54 mm	2.54 mm	Unshielded	Nonstandard 2 Lead	-55 C	125 °C	215 MHz	22 25 MHz	0.075 "	1.91 mm	260 mOhm	10 %	Surface Mount	Ferrite	0.61 A
Delevan 103R-181H	25 MHz	180 nH	0.1 in	0.1 "	2.54 mm	2.54 mm	Unshielded	Nonstandard 2 Lead	-55 C	125 °C	550 MHz		0.075 "	1.91 mm	200 mOhm	3 %	Surface Mount	Ferrite	695 mA	25 MHz	25
Delevan 103-101M	50 MHz	100 nH	0.1 in	0.1 "	2.54 mm	2.54 mm	Unshielded	Nonstandard 2 Lead	-55 C	125 °C	830 MHz	32	0.075 "	1.91 mm		20 %	Surface Mount	Phenolic	650 mA			230 mOhm
Delevan 103-392KS	7.9 MHz	3.9 µH	0.1 in	0.1 "	2.54 mm	2.54 mm	Unshielded	Nonstandard 2 Lead	-55 C	125 °C	68 MHz	7.9 MHz 24	0.075 "	1.91 mm		10 %	Surface Mount	Ferrite	0.25 A			1.55 Ohm
Delevan 103R-151JS	25 MHz	150 nH	0.1 in	0.1 "	2.54 mm	2.54 mm	Unshielded	Nonstandard 2 Lead	-55 C	125 °C	650 MHz		0.075 "	1.91 mm		5 %	Surface Mount	Ferrite	745 mA	25 MHz	25	175 mOhm
Delevan 103R-220M	50 MHz	22 nH	0.1 in	0.1 "	2.54 mm	2.54 mm	Unshielded	Nonstandard 2 Lead	-55 C	125 °C	1.8 GHz		0.075 "	1.91 mm		20 %	Surface Mount	Phenolic	950 mA	50 MHz	50	108 mOhm
Delevan 103R-271H	25 MHz	270 nH	0.1 in	0.1 "	2.54 mm	2.54 mm	Unshielded	Nonstandard 2 Lead	-55 C	125 °C	375 MHz		0.075 "	1.91 mm		3 %	Surface Mount	Ferrite	650 mA	25 MHz	25	230 mOhm
Delevan 103-181JS	25 MHz	180 nH	0.1 in	0.1 "	2.54 mm	2.54 mm	Unshielded	Nonstandard 2 Lead	-55 C	125 °C	550 MHz		0.075 "	1.91 mm	200 mOhm	5 %	Surface Mount	Ferrite	695 mA	25 MHz	25
Delevan 103-821J	25 MHz	820 nH	0.1 in	0.1 "	2.54 mm	2.54 mm	Unshielded	Nonstandard 2 Lead	-55 C	125 °C	160 MHz	22 25 MHz	0.075 "	1.91 mm	530 mOhm	5 %	Surface Mount	Ferrite	430 mA
Delevan 103R-123H	2.5 MHz	12 µH	0.1 in	0.1 "	2.54 mm	2.54 mm	Unshielded	Nonstandard 2 Lead	-55 C	125 °C	35 MHz		0.075 "	1.91 mm		3 %	Surface Mount	Ferrite	160 mA		25	3.8 Ohm	2.5 MHz
