NHG_B-690 Series
Specialty Fuses 200AMP 690V gG SIZE 1DUAL IND
Manufacturer: Eaton - Electronics Division
Catalog
Specialty Fuses 200AMP 690V gG SIZE 1DUAL IND
Beta
⌘K
Specialty Fuses 200AMP 690V gG SIZE 1DUAL IND
Specialty Fuses 200AMP 690V gG SIZE 1DUAL IND
Specialty Fuses 200AMP 690V gG SIZE 1DUAL IND
| Part | Melting I²t | Package / Case | Current Rating (Amps) | Breaking Capacity @ Rated Voltage | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Mounting Type | Approval Agency | Class | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 105000 | Rectangular Blade | 200 A | 120 kA | 52 mm | 2.953 " | 75 mm | 55 mm | 2.047 in | 2.165 " | Requires Holder | CE VDE | NH | 690 VAC |

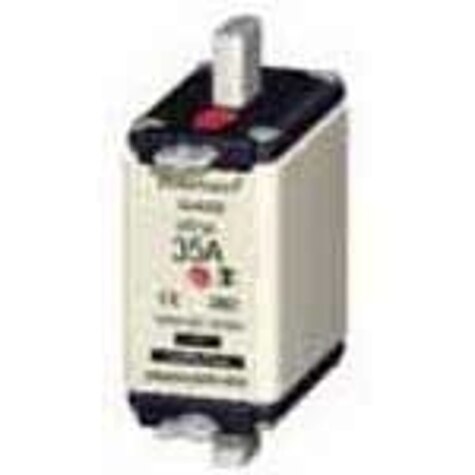

 Eaton - Electronics Division | Rectangular Blade | 32 A | 120 kA | 21 mm | 2.126 " | 54 mm | 43 mm | 0.827 in | 1.693 in | Requires Holder | CE VDE | NH | 690 VAC |
