WR9QA3460 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

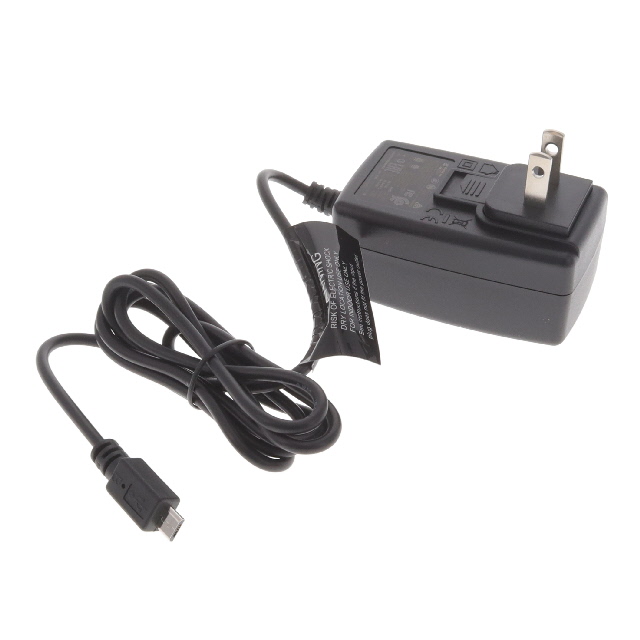

AC/DC WALL MNT ADAPTER 5.2V 18W
| Part | Output Connector | Input Type | Power (Watts) | No Load Power Consumption | Form | Input Connector | Voltage - Output | Region Utilized | Cord Length | Cord Length | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Efficiency | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | USB Micro | Fixed Blade | 18 W | 75 mW | Wall Mount | NEMA 1-15P | 5.2 V | International | 1.2 m | 47.2 in | 3.46 A | 40 °C | -10 °C | 60335-1 60601-1 60950-1 62368-1 | 264 VAC | 90 VAC | BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI | 74 mm | 1.45 in | 2.91 in | 43.5 mm | 1.71 in | 36.8 mm | CoC Tier 2 Level VI | Household Appliances ITE (Commercial) Medical |
