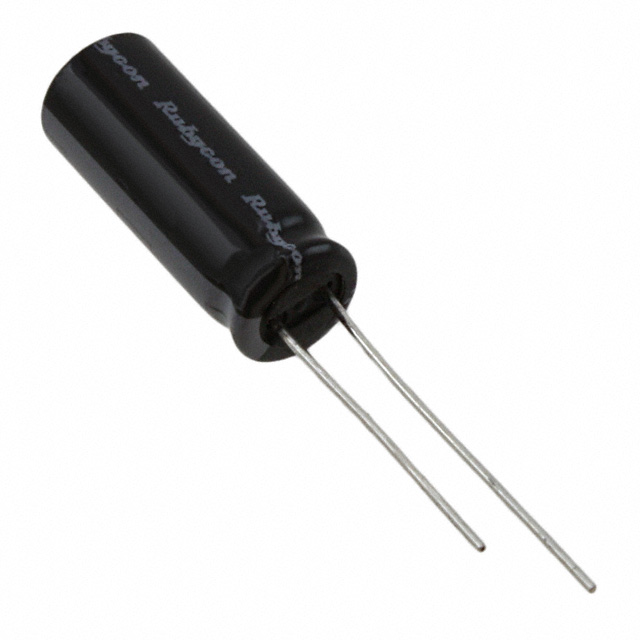

ZLJ Series

Manufacturer: Rubycon

Catalog

ALUMINIUM ELECTROLYTIC CAPACITOR, ZLJ SERIES, 330 - F, - 20%, 35 V, 8 MM, RADIAL LEADED ROHS COMPLIANT: YES

Part	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Ripple Current @ Low Frequency	Lifetime @ Temp.	Applications	Capacitance	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Voltage - Rated	Mounting Type	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Rubycon 35ZLJ330M8X20	0.138 in	3.5 mm	-40 C	105 ░C	41 mOhms	1.078 A	10000 Hrs	General Purpose	330 µF	Can Radial	0.315 in	8 mm	Polar	0.866 in	22 mm	35 V	Through Hole	20 %
Rubycon 6.3ZLJ5600M12.5X30	0.197 "	5 mm	-40 C	105 ░C	18 mOhms	2.415 A	10000 Hrs	General Purpose	5.6 mF	Can Radial	0.492 in	12.5 mm	Polar			6.3 VDC	Through Hole	20 %	1.26 in	32 mm
Rubycon 50ZLJ180M8X16	0.138 in	3.5 mm	-40 C	105 ░C	81 mOhms	850 mA	10000 Hrs	General Purpose	180 µF	Can Radial	0.315 in	8 mm	Polar			50 VDC	Through Hole	20 %		0.689 in	1.7 A	17.5 mm
Rubycon 16ZLJ3300M16X20	0.295 in	7.5 mm	-40 C	105 ░C	21 mOhms	2.331 A	10000 Hrs	General Purpose	3.3 mF	Can Radial	0.63 in	16 mm	Polar	0.866 in	22 mm	16 V	Through Hole	20 %			3.33 A
Rubycon 50ZLJ100M8X11.5	0.138 in	3.5 mm	-40 C	105 ░C	120 mOhms	475 mA	9000 Hrs	General Purpose	100 µF	Can Radial	0.315 in	8 mm	Polar			50 VDC	Through Hole	20 %	0.512 "	13 mm	950 mA
Rubycon 25ZLJ560M8X20	0.138 in	3.5 mm	-40 C	105 ░C	41 mOhms	1.078 A	10000 Hrs	General Purpose	560 µF	Can Radial	0.315 in	8 mm	Polar	0.866 in	22 mm	25 VDC	Through Hole	20 %
Rubycon 6.3ZLJ3900M12.5X20	0.197 "	5 mm	-40 C	105 ░C	25 mOhms	1.736 A	10000 Hrs	General Purpose	3900 µF	Can Radial	0.492 in	12.5 mm	Polar	0.866 in	22 mm	6.3 VDC	Through Hole	20 %			2.48 A
Rubycon 63ZLJ180M10X16	0.197 "	5 mm	-40 C	105 ░C	76 mOhms	600 mA	10000 Hrs	General Purpose	180 µF	Can Radial	0.394 in	10 mm	Polar			63 V	Through Hole	20 %		0.689 in	1.2 A	17.5 mm
Rubycon 63ZLJ1500M16X31.5	0.295 in	7.5 mm	-40 C	105 ░C	20 mOhms	2.1 A	10000 Hrs	General Purpose	1.5 mF	Can Radial	0.63 in	16 mm	Polar			63 V	Through Hole	20 %	1.319 in		3.5 A		33.5 mm
Rubycon 25ZLJ680M10X16	0.197 "	5 mm	-40 C	105 ░C	38 mOhms	1.1 A	10000 Hrs	General Purpose	680 µF	Can Radial	0.394 in	10 mm	Polar			25 VDC	Through Hole	20 %		0.689 in	2 A	17.5 mm
