RM20M Series

Catalog

CONN PIN 20-22AWG GOLD CRIMP

Part	Contact Termination	Contact Finish Thickness	Contact Finish	Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Pin or Socket	Contact Material

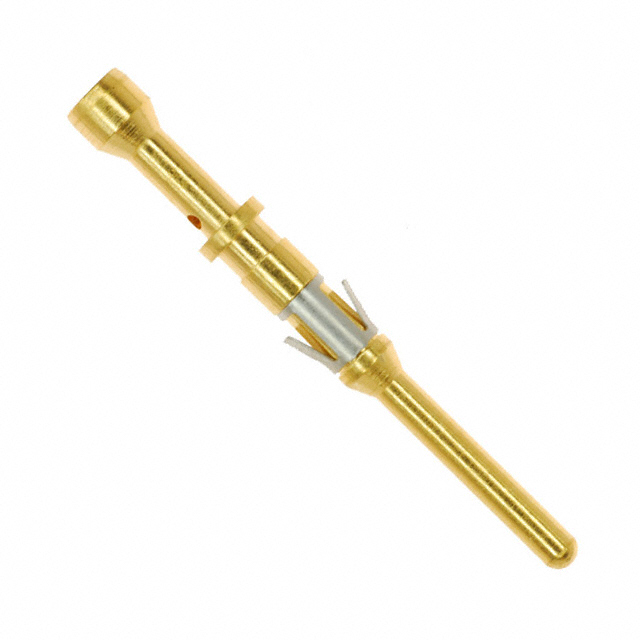

Amphenol Aerospace Operations RM20M12D28	Crimp	29.5 µin	Gold	Machined	19.5 AWG	22 AWG	Pin	Copper Alloy
Amphenol Aerospace Operations RM20M13D28	Crimp	29.5 µin	Gold	Machined	19.5 AWG	22 AWG	Pin	Copper Alloy
Amphenol Aerospace Operations RM20M12K	Crimp	16 µin	Gold	Machined	19.5 AWG	22 AWG	Pin	Copper Alloy
Amphenol Aerospace Operations RM20M12D281000	Crimp	29.5 µin	Gold	Machined	19.5 AWG	22 AWG	Pin	Copper Alloy
Amphenol Aerospace Operations RM20M12T	Crimp	120 µin	Tin	Machined	19.5 AWG	22 AWG	Pin	Brass

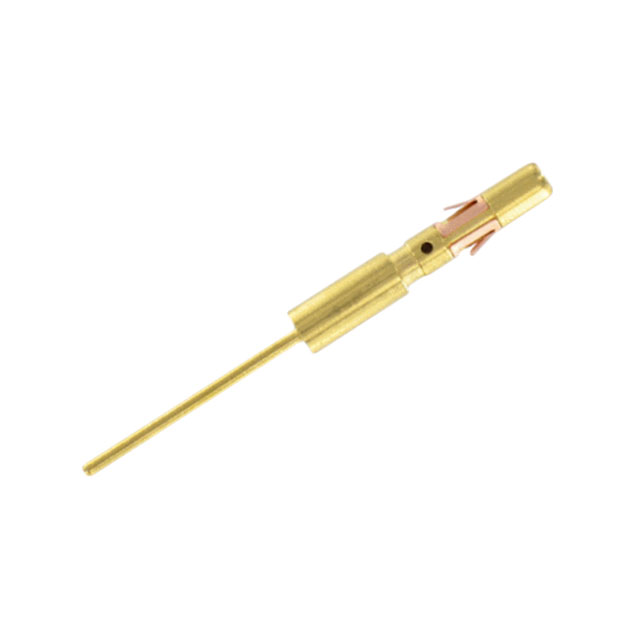

Amphenol Aerospace Operations RM20M12E8K	Solder	16 µin	Gold	Machined	19.5 AWG	22 AWG	Pin	Copper Alloy
Amphenol Aerospace Operations RM20M12G8D28	Solder	29.5 µin	Gold	Machined	19.5 AWG	22 AWG	Pin	Copper Alloy

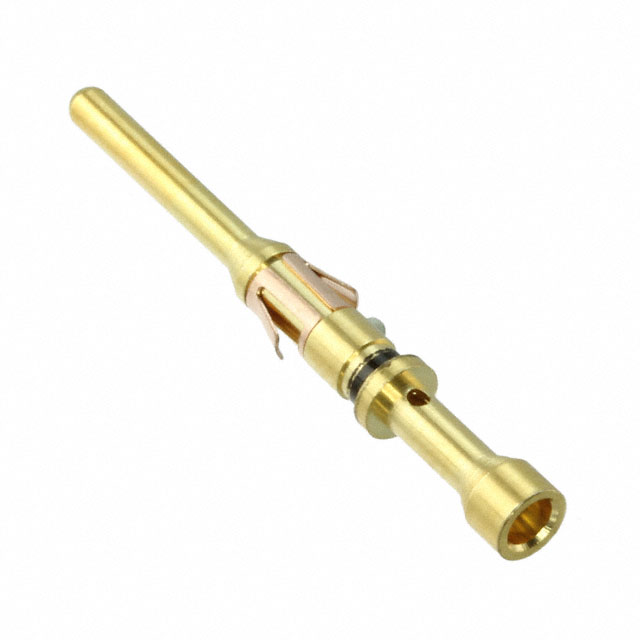

Amphenol Aerospace Operations RM20M13K	Crimp	16 µin	Gold	Machined	19.5 AWG	22 AWG	Pin	Copper Alloy
Amphenol Aerospace Operations RM20M-13T	Crimp	120 µin	Tin	Machined	19.5 AWG	22 AWG	Pin	Copper Alloy
