85-100 Series

Catalog

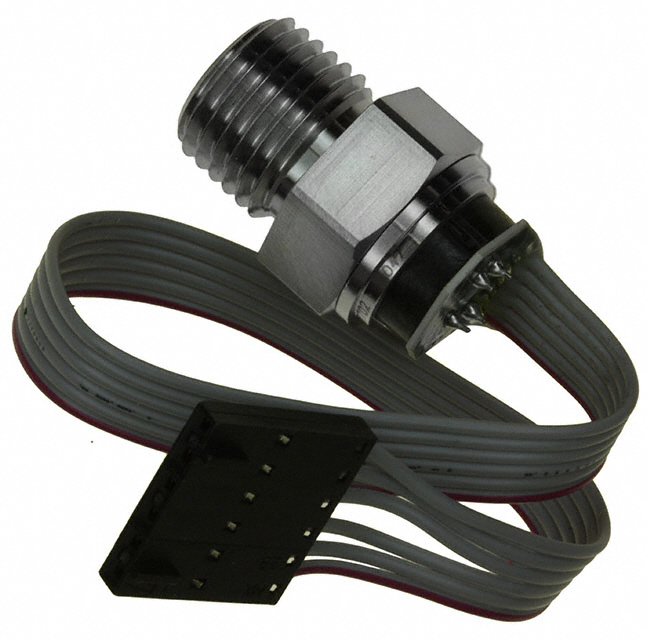

SENSOR 100PSIA 1/4NPT RIB W/CONN

Part	Output [Min]	Output [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Accuracy	Port Style	Features	Operating Pressure	Operating Pressure	Maximum Pressure [Max]	Maximum Pressure [Max]	Output Type	Termination Style
TE Connectivity AMP Connectors 85-100A-4C	0 mV	100 mV	125 °C	-40 C	Cylinder	0.1 %	No Port	Temperature Compensated	689.48 kPa	100 PSI	300 PSI	2068.43 kPa	Wheatstone Bridge	Cable with Connector
