4658-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

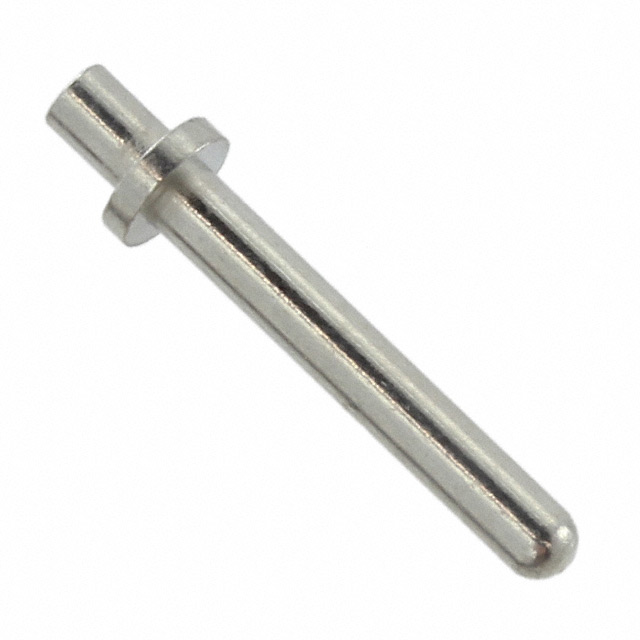

CONN PC PIN CIRC .040 DIA TIN
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type | Contact Material | Insulation | Length - Overall [x] | Length - Overall [x] | Terminal Style | Contact Finish Thickness | Contact Finish Thickness | Length - Above Flange [x] | Length - Above Flange [x] | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | 1.78 mm | 0.07 in | Tin | 2.08 mm | 0.082 " | PC Pin | Brass Alloy | Non-Insulated | 0.207 in | 5.26 mm | Single End | 200 Áin | 5.08 Ám | 0.094 in | 2.39 mm | Swage | 0.043 in | 1.09 mm | Through Hole |
