LPH1-04 Series
Manufacturer: New Energy
Beta
⌘K

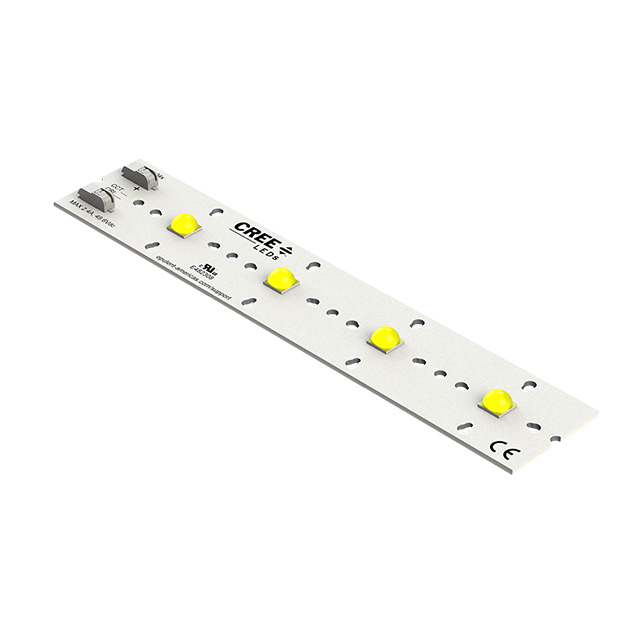

LED LIGHTING MODULES XHP70.2 L2 BOARD 1X4 WHITE-2700K 5940 LM
| Part | Luminous Flux @ Current/Temperature | Size / Dimension [x] | Size / Dimension [y] | Lumens/Watt @ Current - Test | CRI (Color Rendering Index) | Current - Max [Max] | Configuration | Color | Current - Test | Lens Type | Type | Temperature - Test | CCT (K) | CCT (K) | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 New Energy | 5490 lm | 6.7 " | 32.99 mm | 126 lm/W | 80 | 2.4 A | Linear Light Strip | Warm White | 1.05 A | Domed | LED Module | 85 °C | 2700 K | 3-Step MacAdam Ellipse | 44.8 V |
New Energy | 7320 lm | 6.7 " | 32.99 mm | 156 lm/W | 80 | 2.4 A | Linear Light Strip | Cool White | 1.05 A | Domed | LED Module | 85 °C | 5700 K | 44.8 V | |
New Energy | 6840 lm | 6.7 " | 32.99 mm | 145 lm/W | 80 | 2.4 A | Linear Light Strip | Warm White | 1.05 A | Domed | LED Module | 85 °C | 3000 K | 5-Step MacAdam Ellipse | 44.8 V |
New Energy | 6840 lm | 6.7 " | 32.99 mm | 145 lm/W | 70 | 2.4 A | Linear Light Strip | Warm White | 1.05 A | Domed | LED Module | 85 °C | 3000 K | 5-Step MacAdam Ellipse | 44.8 V |
New Energy | 7320 lm | 6.7 " | 32.99 mm | 156 lm/W | 70 | 2.4 A | Linear Light Strip | Cool White | 1.05 A | Domed | LED Module | 85 °C | 5000 K | 5-Step MacAdam Ellipse | 44.8 V |
New Energy | 5490 lm | 6.7 " | 32.99 mm | 126 lm/W | 90 | 2.4 A | Linear Light Strip | Warm White | 1.05 A | Domed | LED Module | 85 °C | 2700 K | 3-Step MacAdam Ellipse | 44.8 V |
