896-018 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 18POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Contact Finish | Number of Positions/Bay/Row | Gender | Mounting Type | Number of Positions | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows [custom] | Pitch | Pitch | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Color | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Read Out | Termination Rows | Number of Rows | Number of Positions/Bay/Row [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Gold | 9 | Female | Through Hole | 18 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 2 | 3.18 mm | 0.125 in | Solder | 0.25 Ám | 10 Áin | Copper Alloy | Black | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual | ||||

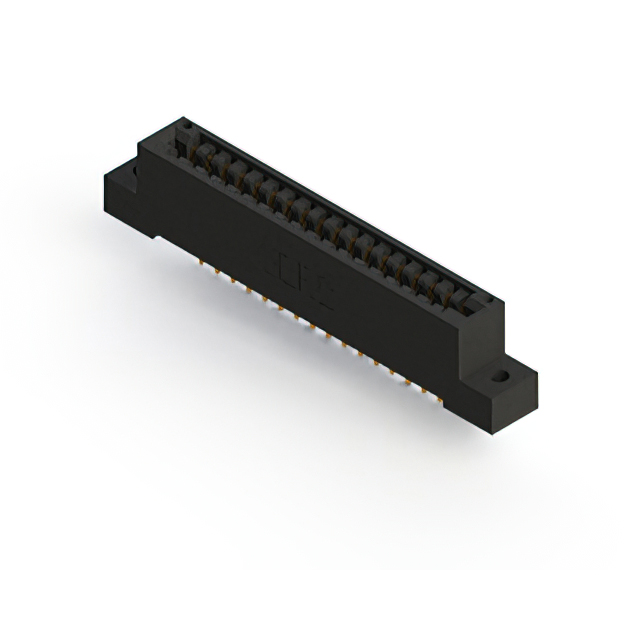

 EDAC Inc. | Polyphenylene Sulfide (PPS) | Gold | Female | Through Hole | 18 | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 3.18 mm | 0.125 in | Solder | 0.25 Ám | 10 Áin | Copper Alloy | Black | Non Specified - Single Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | 1 | 1 | 18 | ||||

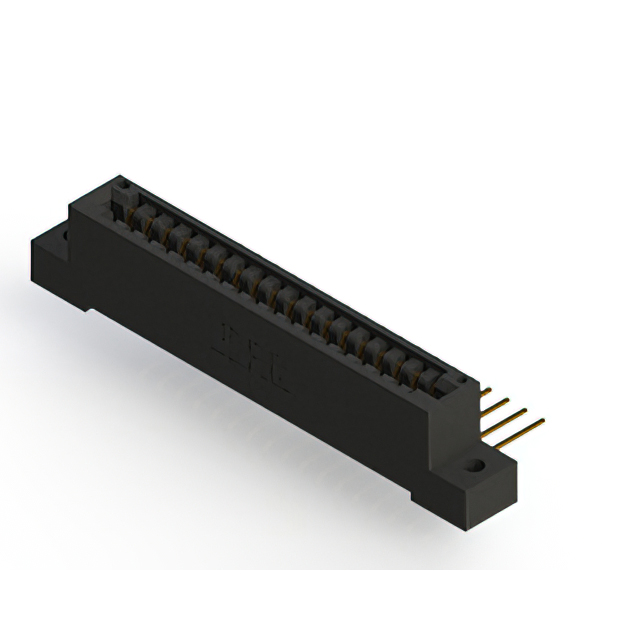

 EDAC Inc. | Polyphenylene Sulfide (PPS) | Gold | Female | Right Angle Through Hole | 18 | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 3.18 mm | 0.125 in | Solder | 0.25 Ám | 10 Áin | Copper Alloy | Black | Non Specified - Single Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | 1 | 1 | 18 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Gold | 9 | Female | Board Edge Straddle Mount | 18 | 4-40 Threaded Insert Top Mount Opening | 2 | 3.18 mm | 0.125 in | Solder | 0.25 Ám | 10 Áin | Copper Alloy | Black | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual | Card Extender | |||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Gold | 9 | Female | Board Edge Straddle Mount | 18 | 2 | 3.18 mm | 0.125 in | Solder | 0.25 Ám | 10 Áin | Copper Alloy | Black | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual | Card Extender | ||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Gold | Female | Through Hole | 18 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 3.18 mm | 0.125 in | Wire Wrap | 0.25 Ám | 10 Áin | Copper Alloy | Black | Non Specified - Single Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | 1 | 1 | 18 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Gold | Female | Through Hole | 18 | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 3.18 mm | 0.125 in | Wire Wrap | 0.25 Ám | 10 Áin | Copper Alloy | Black | Non Specified - Single Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | 1 | 1 | 18 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Gold | 9 | Female | Right Angle Through Hole | 18 | 0.156 " | 3.96 mm | 2 | 3.18 mm | 0.125 in | Solder | 0.25 Ám | 10 Áin | Copper Alloy | Black | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual | |||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Gold | Female | Through Hole | 18 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 3.18 mm | 0.125 in | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Copper Alloy | Black | Non Specified - Single Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Single | 1 | 1 | 18 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Gold | 9 | Female | Through Hole | 18 | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 2 | 3.18 mm | 0.125 in | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Copper Alloy | Black | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual |
