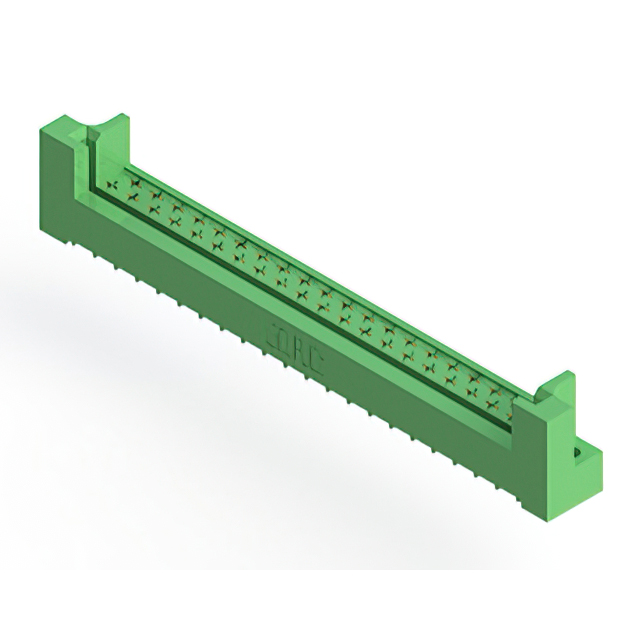

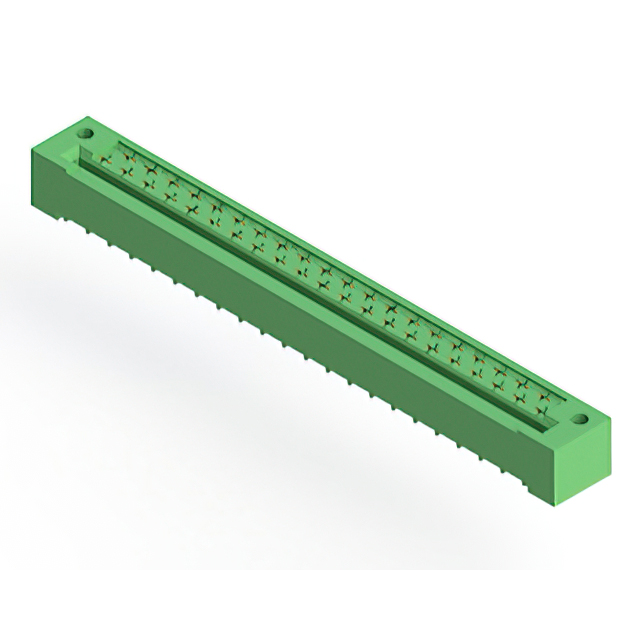

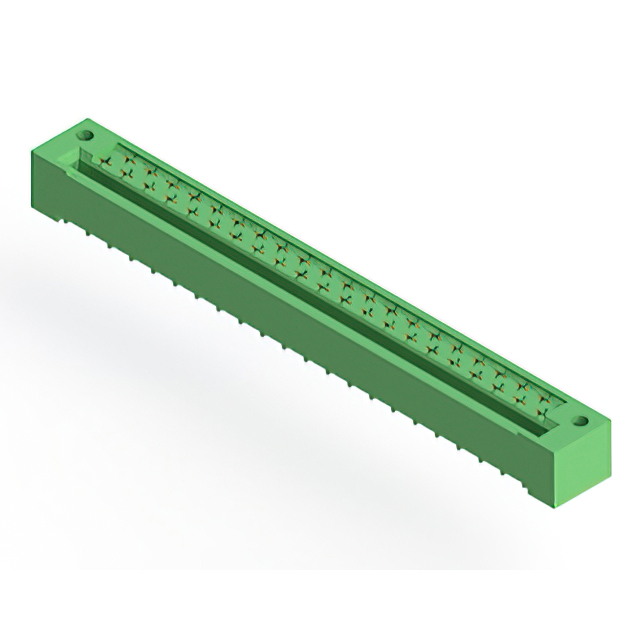

408-041 Series
Manufacturer: EDAC Inc.
Beta
⌘K
STANDARD CARD EDGE CONNECTORS CARD EDGE METAL TO METAL 2 PIECE CONNECTORS
| Part | Termination Rows [custom] | Material - Insulation | Features | Contact Finish | Pitch | Pitch | Termination | Card Type | Contact Material | Number of Positions | Card Thickness | Card Thickness | Color | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Mounting Type | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Card Guides | Gold | 5.08 mm | 0.2 in | Solder | Non Specified - Dual Edge | Copper Alloy | 41 | 2.36 mm | 0.093 " | Green | -65 ░C | 125 °C | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Panel Mount Through Hole | Female |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | 5.08 mm | 0.2 in | Solder | Non Specified - Dual Edge | Copper Alloy | 41 | 1.57 mm | 0.062 in | Green | -65 ░C | 125 °C | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Panel Mount Through Hole | Female | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Card Guides | Gold | 5.08 mm | 0.2 in | Solder | Non Specified - Dual Edge | Copper Alloy | 41 | 1.57 mm | 0.062 in | Green | -65 ░C | 125 °C | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Panel Mount Through Hole | Female |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Card Guides | Gold | 5.08 mm | 0.2 in | Solder Eyelet(s) | Non Specified - Dual Edge | Copper Alloy | 41 | 1.57 mm | 0.062 in | Green | -65 ░C | 125 °C | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Panel Mount Through Hole | Female |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | 5.08 mm | 0.2 in | Wire Wrap | Non Specified - Dual Edge | Copper Alloy | 41 | 1.57 mm | 0.062 in | Green | -65 ░C | 125 °C | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Panel Mount Through Hole | Female | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Card Guides | Gold | 5.08 mm | 0.2 in | Solder | Non Specified - Dual Edge | Copper Alloy | 41 | 2.36 mm | 0.093 " | Green | -65 ░C | 125 °C | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Panel Mount Through Hole | Female |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | 5.08 mm | 0.2 in | Solder | Non Specified - Dual Edge | Copper Alloy | 41 | 2.36 mm | 0.093 " | Green | -65 ░C | 125 °C | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Panel Mount Through Hole | Female | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Card Guides | Gold | 5.08 mm | 0.2 in | Solder | Non Specified - Dual Edge | Copper Alloy | 41 | 1.57 mm | 0.062 in | Green | -65 ░C | 125 °C | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Panel Mount Through Hole | Female |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | 5.08 mm | 0.2 in | Solder | Non Specified - Dual Edge | Copper Alloy | 41 | 2.36 mm | 0.093 " | Green | -65 ░C | 125 °C | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Panel Mount Through Hole | Female | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | 5.08 mm | 0.2 in | Solder | Non Specified - Dual Edge | Copper Alloy | 41 | 1.57 mm | 0.062 in | Green | -65 ░C | 125 °C | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Panel Mount Through Hole | Female |
