094512 Series
Manufacturer: Molex
Beta
⌘K

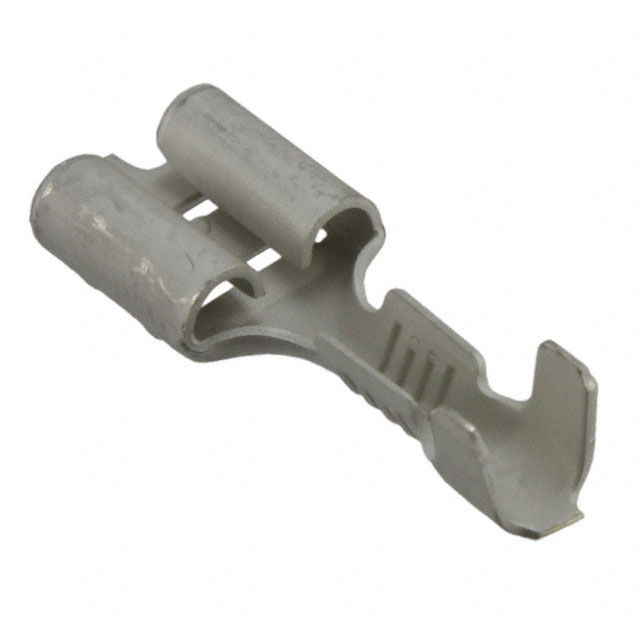

CONN QC RCPT 10-12AWG 0.250
| Part | Length - Overall [x] | Length - Overall [x] | Tab Thickness | Tab Thickness | Gender | Tab Width | Tab Width | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Tab Length | Tab Length | Contact Material | Terminal Type | Insulation | Mounting Type | Termination | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.839 " | 21.3 mm | 0.032 in | 0.81 mm | Female | 6.35 mm | 0.25 in | Tin | 12 AWG | 10 AWG | 0.303 in | 7.7 mm | Brass | Standard | Non-Insulated | Free Hanging (In-Line) | Crimp | 5.1 mm | 3.81 mm | 0.201 " | 0.15 " |
