PJ-002 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

CONN PWR JACK 2.5X5.5MM SOLDER

Part	Shielding	Termination	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Internal Switch(s)	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Features	Mounting Type	Gender	Connector Type	Mating Length/Depth	Mating Length/Depth	Voltage - Rated	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Contact Material [custom]	Housing Material	Body Color	Contact Material - Plating	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]
Same Sky (Formerly CUI Devices) PJ-002BH-SMT-TR	Unshielded	Solder	5 A	UL94 V-0	85 °C	-25 °C	Single Switch Normally Closed	2	3	Board Guide Solder Retention	Right Angle Surface Mount	Male	Jack	0.35 in	8.9 mm	24 VDC	0.217 in	2.5 mm	5.5 mm	0.098 in
Same Sky (Formerly CUI Devices) PJ-002BH-SMT-TR	Unshielded	Solder	5 A	UL94 V-0	85 °C	-25 °C	Single Switch Normally Closed	2	3	Board Guide Solder Retention	Right Angle Surface Mount	Male	Jack	0.35 in	8.9 mm	24 VDC	0.217 in	2.5 mm	5.5 mm	0.098 in	Brass Copper Alloy	Nylon 6T Polyamide (PA6T)	Black	Silver

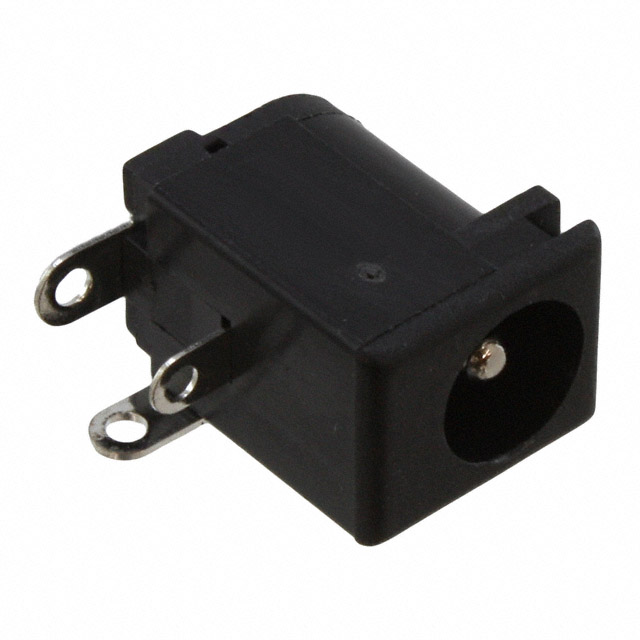

Same Sky (Formerly CUI Devices) PJ-002A	Unshielded	Solder Eyelet(s)	2.5 A	UL94 V-0	85 °C	-25 °C	Single Switch Normally Closed	2	3		Right Angle Through Hole	Male	Jack	0.354 in	9 mm	24 VDC					Brass Copper Alloy	Polybutylene Terephthalate (PBT)	Black	Tin	0.083 " 0.217 in	2.1 mm 5.5 mm	0.079 in	2 mm	5.5 mm	0.217 in
Same Sky (Formerly CUI Devices) PJ-002AH	Unshielded	Solder Eyelet(s)	5 A	UL94 V-0	85 °C	-25 °C	Single Switch Normally Closed	2	3		Right Angle Through Hole	Male	Jack	0.354 in	9 mm	24 VDC					Brass Copper Alloy	Polybutylene Terephthalate (PBT)	Black	Nickel Silver	0.083 " 0.217 in	2.1 mm 5.5 mm	0.079 in	2 mm	6.5 mm	0.256 in
Same Sky (Formerly CUI Devices) PJ-002A	Unshielded	Solder Eyelet(s)	2.5 A	UL94 V-0	85 °C	-25 °C	Single Switch Normally Closed	2	3		Right Angle Through Hole	Male	Jack	0.374 in	9.5 mm	24 VDC									2 mm 5.5 mm		0.079 in	2 mm	5.5 mm	0.217 in
Same Sky (Formerly CUI Devices) PJ-002AH	Unshielded	Solder Eyelet(s)	5 A	UL94 V-0	85 °C	-25 °C	Single Switch Normally Closed	2	3		Right Angle Through Hole	Male	Jack	0.374 in	9.5 mm	24 VDC									0.083 " 0.217 in	2.1 mm 5.5 mm	0.079 in	2 mm	6.5 mm	0.256 in
