ECX-34S Series
Manufacturer: ECS Inc.
Beta
⌘K

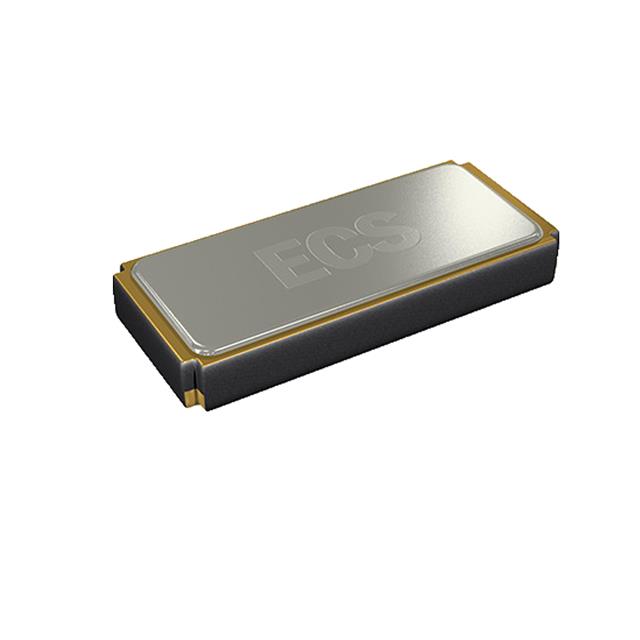

CRYSTALS 32.768 KHZ 12.5 PF +/-20 PPM ECX-34S -40 - +125C 3215 ROHS COMPLIANT
| Part | Package / Case | Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package [y] | Supplier Device Package | Supplier Device Package [x] | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Load Capacitance | Frequency Tolerance | ESR (Equivalent Series Resistance) | Operating Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | 2-SMD No Lead | kHz Crystal (Tuning Fork) | 0.035 in | 0.9 mm | 0.032768 MHz | 125 °C | -40 C | 1.5 | 2-SMD | 3.2 | Surface Mount | 1.5 mm | 3.2 mm | 0.126 in | 0.059 " | 12.5 pF | 20 ppm | 70 kOhms | Fundamental |
