337-026 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 26POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Mounting Type	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Card Type	Read Out	Color	Number of Positions	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Gender	Number of Rows [custom]	Termination	Pitch	Pitch	Features	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]

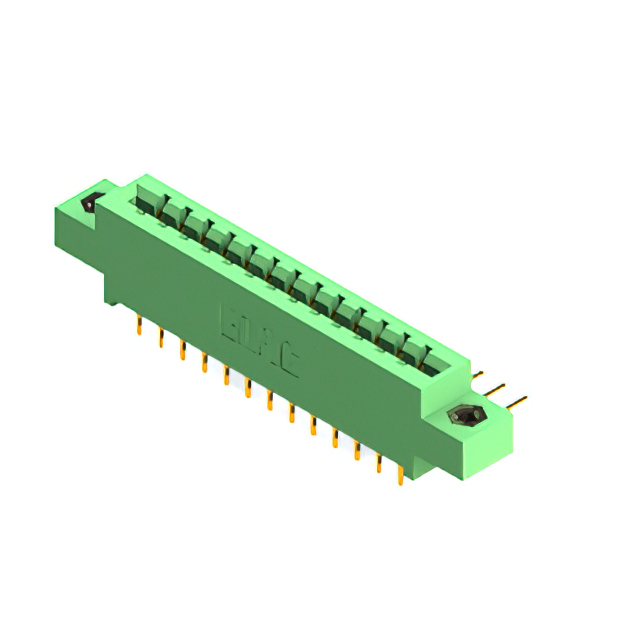

EDAC Inc. 337-026-559-808	2	Polyester Thermoplastic	Right Angle Through Hole	13	-40 C	105 ░C	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	Dual	Green	26	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.25 Ám	10 Áin	Gold	Female	2	Wire Wrap	3.96 mm	0.156 in

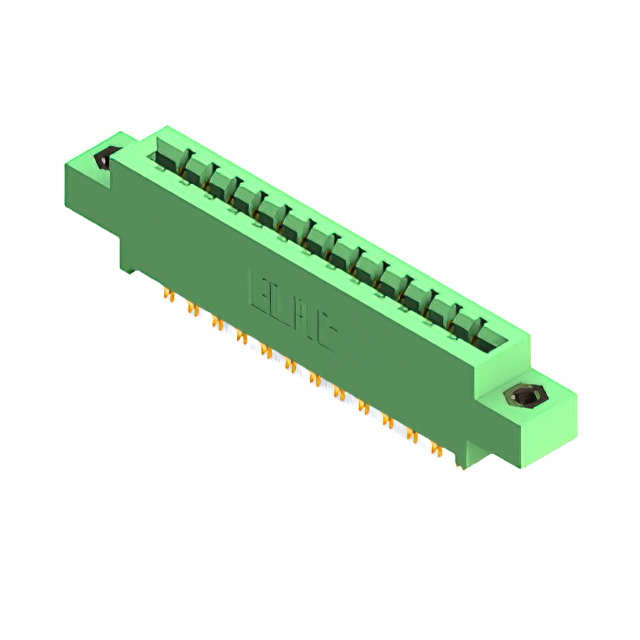

EDAC Inc. 337-026-555-807	2	Polyester Thermoplastic	Board Edge Straddle Mount	13	-40 C	105 ░C	M3 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	Dual	Green	26	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.25 Ám	10 Áin	Gold	Female	2	Solder Eyelet(s)	3.96 mm	0.156 in	Card Extender

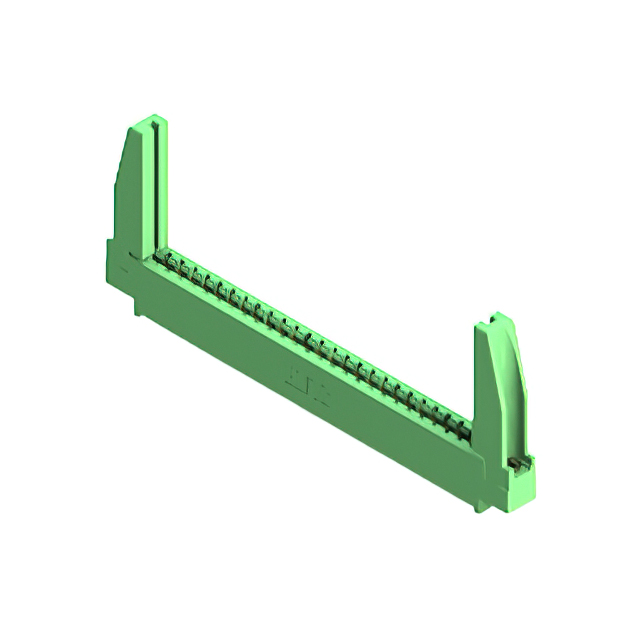

EDAC Inc. 337-026-521-678		Polyester Thermoplastic	Through Hole	26	-40 C	105 ░C	4-40 Threaded Insert Top Mount Opening	Non Specified - Single Edge	Single	Green	26	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.25 Ám	10 Áin	Gold	Female		Solder	3.96 mm	0.156 in	Card Guides	1	1

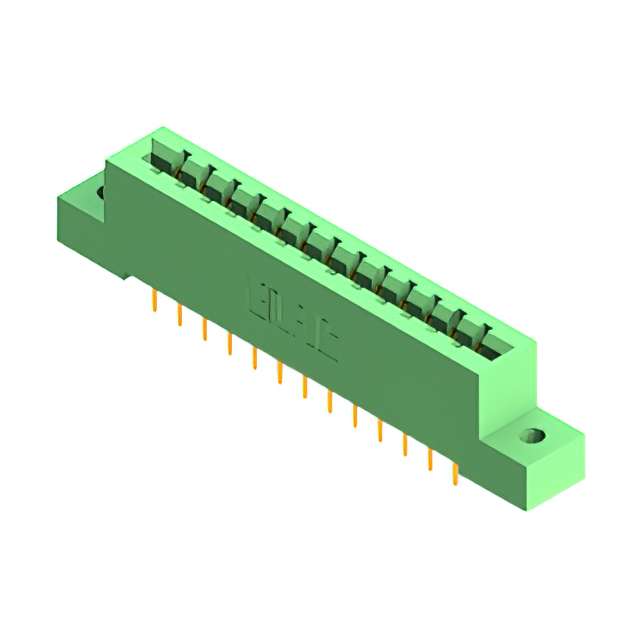

EDAC Inc. 337-026-524-202	2	Polyester Thermoplastic	Through Hole	13	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	Dual	Green	26	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.25 Ám	10 Áin	Gold	Female	2	Solder	3.96 mm	0.156 in				3.25 mm	0.128 "

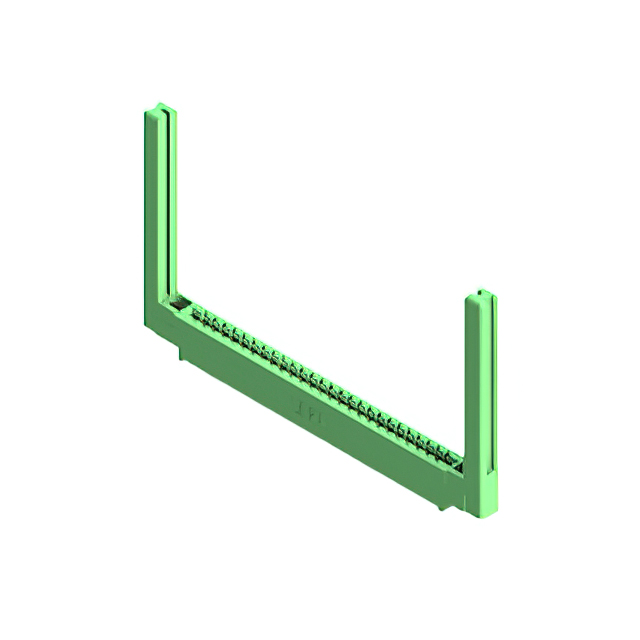

EDAC Inc. 337-026-521-658		Polyester Thermoplastic	Through Hole	26	-40 C	105 ░C	4-40 Threaded Insert Top Mount Opening	Non Specified - Single Edge	Single	Green	26	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.25 Ám	10 Áin	Gold	Female		Solder	3.96 mm	0.156 in		1	1

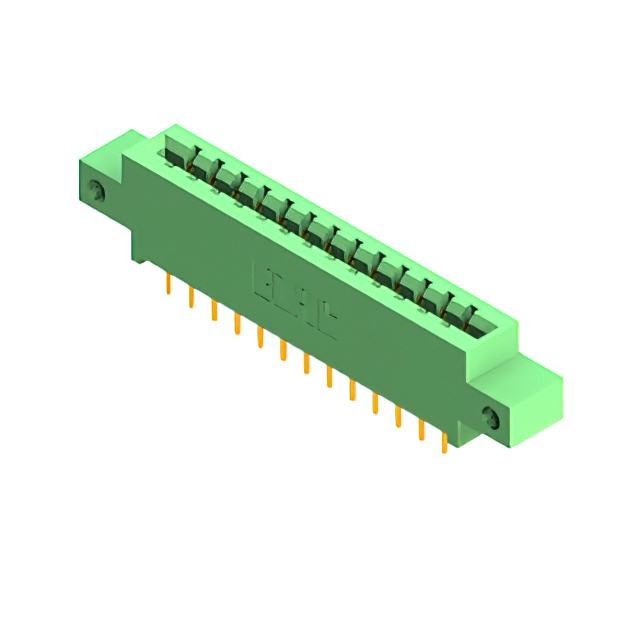

EDAC Inc. 337-026-523-812	2	Polyester Thermoplastic	Through Hole	13	-40 C	105 ░C	Side Mount Opening Unthreaded	Non Specified - Dual Edge	Dual	Green	26	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.25 Ám	10 Áin	Gold	Female	2	Solder	3.96 mm	0.156 in				3.25 mm	0.128 "
EDAC Inc. 337-026-540-603		Polyester Thermoplastic	Through Hole	26	-40 C	105 ░C	Floating Bobbin Top Mount Opening	Non Specified - Single Edge	Single	Green	26	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.25 Ám	10 Áin	Gold	Female		Wire Wrap	3.96 mm	0.156 in		1	1	2.95 mm	0.116 "

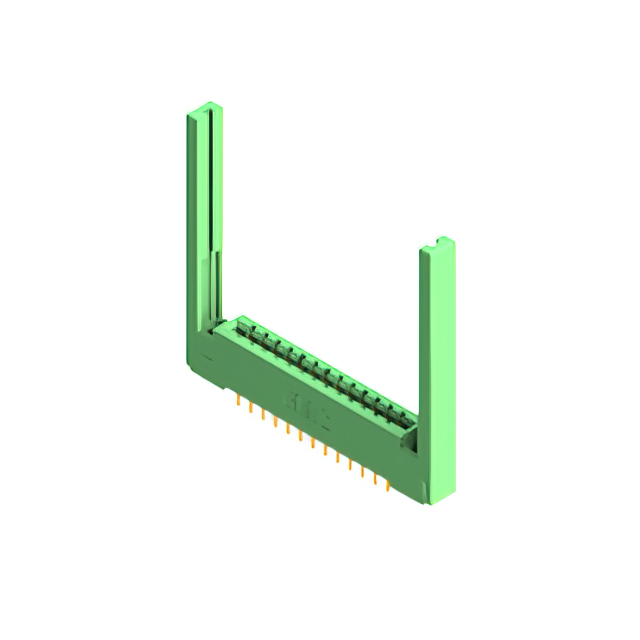

EDAC Inc. 337-026-523-268	2	Polyester Thermoplastic	Through Hole	13	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	Dual	Green	26	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.25 Ám	10 Áin	Gold	Female	2	Solder	3.96 mm	0.156 in	Card Guides

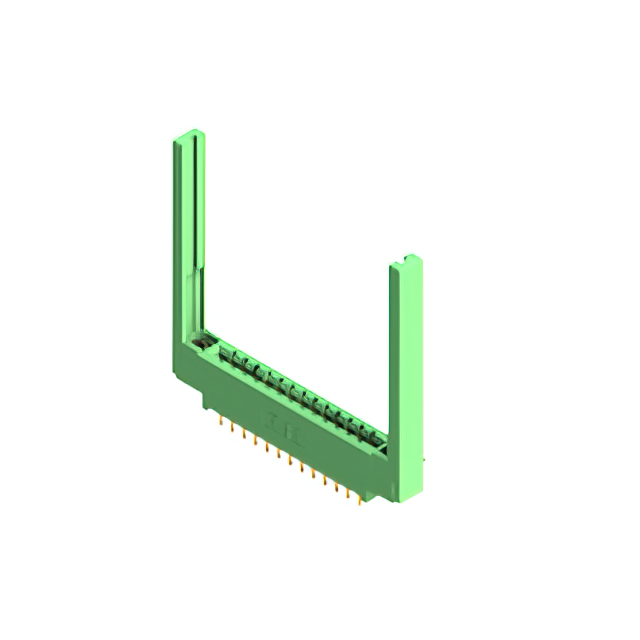

EDAC Inc. 337-026-558-868	2	Polyester Thermoplastic	Right Angle Through Hole	13	-40 C	105 ░C	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	Dual	Green	26	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.25 Ám	10 Áin	Gold	Female	2	Wire Wrap	3.96 mm	0.156 in	Card Guides

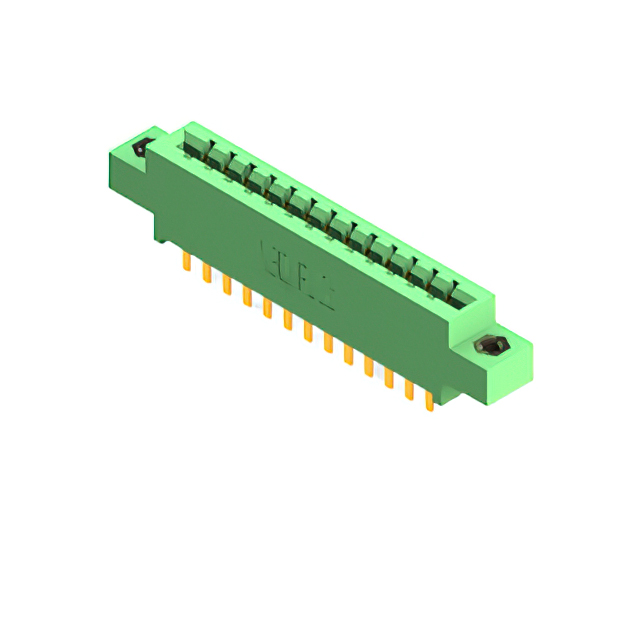

EDAC Inc. 337-026-544-808	2	Polyester Thermoplastic	Through Hole	13	-40 C	105 ░C	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	Dual	Green	26	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	0.25 Ám	10 Áin	Gold	Female	2	Wire Wrap	3.96 mm	0.156 in
