fsm Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

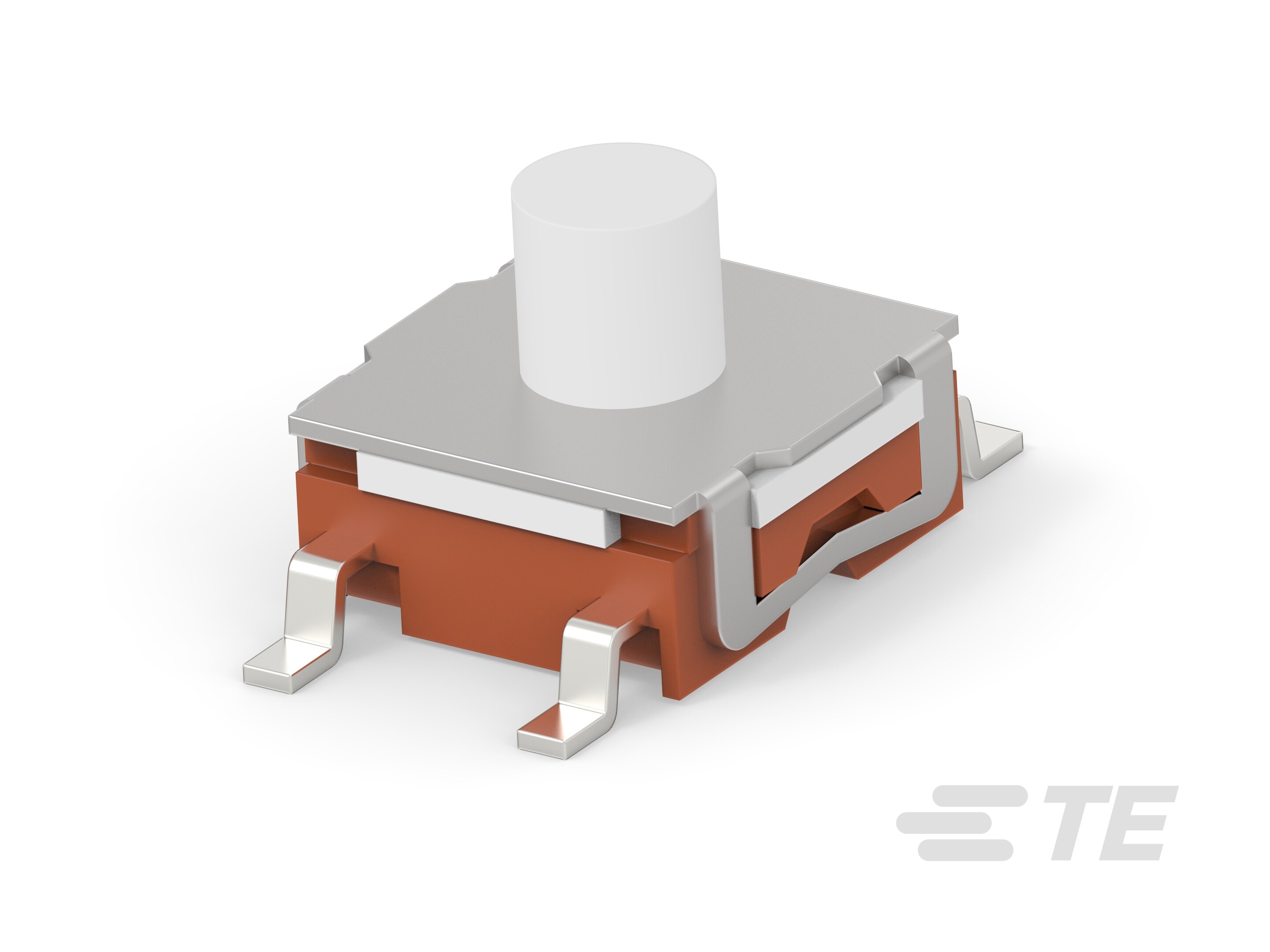

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/24VDC; SMT; NONE; OFF-(ON)
| Part | Mechanical Life | Actuator Material | Switch Travel | Contact Rating @ Voltage | Termination Style | Actuator Orientation | Outline [x] | Outline [y] | Actuator Height off PCB, Vertical [z] | Illumination | Switch Function | Actuator Type | Circuit | Operating Force | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 500000 Cycles | Silicone Rubber | 0.15 mm | 0.05 A 24 VDC | Gull Wing | Top Actuated | 6.2 mm | 6.2 mm | 5 mm | Non-Illuminated | Off-Mom | Standard | SPST-NO | 160 gf | Surface Mount | 85 °C | -35 °C |
 TE Connectivity AMP Connectors | 0.05 A 24 VDC | Gull Wing | Top Actuated | 6 mm | 6 mm | 9.5 mm | Non-Illuminated | Off-Mom | Standard | SPST-NO | 260 gf | Surface Mount | 85 °C | -40 C |
