EXC806 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ANTENNAS DUCK,EXC,806-866MHZ, 1/4W

Part	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Mounting Type	Frequency (Center/Band)	Power - Max [Max]	Termination	Height (Max) [Max] [z]	Height (Max) [z]	Antenna Type	RF Family/Standard	Applications	Frequency Range [Min]	Frequency Range [Max]	Number of Bands	VSWR

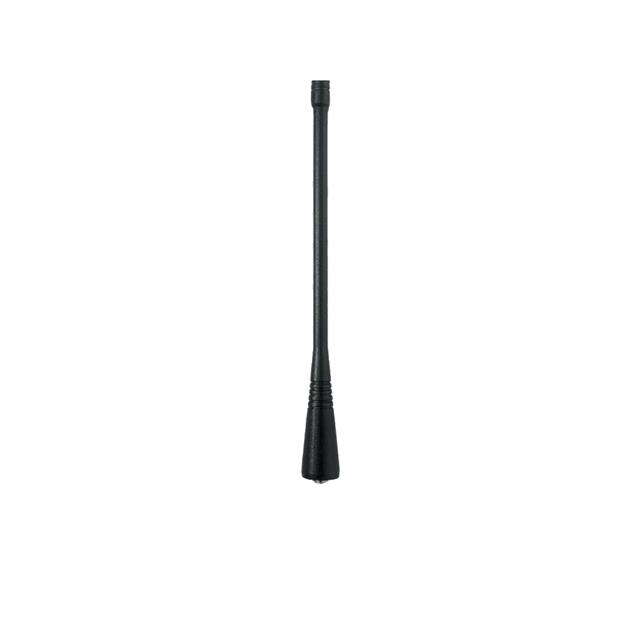

TE Connectivity AMP Connectors EXC806MD	1 GHz	UHF	300 MHz	Connector Mount	836 MHz	50 W	MD	4.6 in	116.84 mm	Whip Straight	Bluetooth WiFi	Bluetooth Wi-Fi	806 MHz	866 MHz	1	1.5
TE Connectivity AMP Connectors EXC806MD	1 GHz	UHF	300 MHz	Connector Mount	836 MHz	50 W	MD	4.6 in	116.84 mm	Whip Straight	Bluetooth WiFi	Bluetooth Wi-Fi	806 MHz	866 MHz	1	1.5
TE Connectivity AMP Connectors EXC806TNX	1 GHz	UHF	300 MHz	Connector Mount	836 MHz	50 W	TNX	4.6 in	116.84 mm	Whip Straight	Bluetooth WiFi	Bluetooth Wi-Fi	806 MHz	866 MHz	1	1.5
TE Connectivity AMP Connectors EXC806SM	1 GHz	UHF	300 MHz	Connector Mount	836 MHz	50 W		4.6 in	116.84 mm	Whip Straight	Bluetooth WiFi	Bluetooth Wi-Fi	806 MHz	866 MHz	1	1.5
TE Connectivity AMP Connectors EXC806SF	1 GHz	UHF	300 MHz	Connector Mount	836 MHz	50 W	SF	4.6 in	116.84 mm	Whip Straight	Bluetooth WiFi	Bluetooth Wi-Fi	806 MHz	866 MHz	1	1.5
TE Connectivity AMP Connectors EXC806SFU	1 GHz	UHF	300 MHz	Connector Mount	836 MHz	50 W	SFU	4.6 in	116.84 mm	Whip Straight	Bluetooth WiFi	Bluetooth Wi-Fi	806 MHz	866 MHz	1	1.5
TE Connectivity AMP Connectors EXC806TNX	1 GHz	UHF	300 MHz	Connector Mount	836 MHz	50 W	TNX	4.6 in	116.84 mm	Whip Straight	Bluetooth WiFi	Bluetooth Wi-Fi	806 MHz	866 MHz	1	1.5
TE Connectivity AMP Connectors EXC806SF	1 GHz	UHF	300 MHz	Connector Mount	836 MHz	50 W	SF	4.6 in	116.84 mm	Whip Straight	Bluetooth WiFi	Bluetooth Wi-Fi	806 MHz	866 MHz	1	1.5
TE Connectivity AMP Connectors EXC806BNX	1 GHz	UHF	300 MHz	Connector Mount	836 MHz	50 W	BNX	4.6 in	116.84 mm	Whip Straight	Bluetooth WiFi	Bluetooth Wi-Fi	806 MHz	866 MHz	1	1.5
TE Connectivity AMP Connectors EXC806BNX	1 GHz	UHF	300 MHz	Connector Mount	836 MHz	50 W	BNX	4.6 in	116.84 mm	Whip Straight	Bluetooth WiFi	Bluetooth Wi-Fi	806 MHz	866 MHz	1	1.5
