LM2716 Series

Catalog

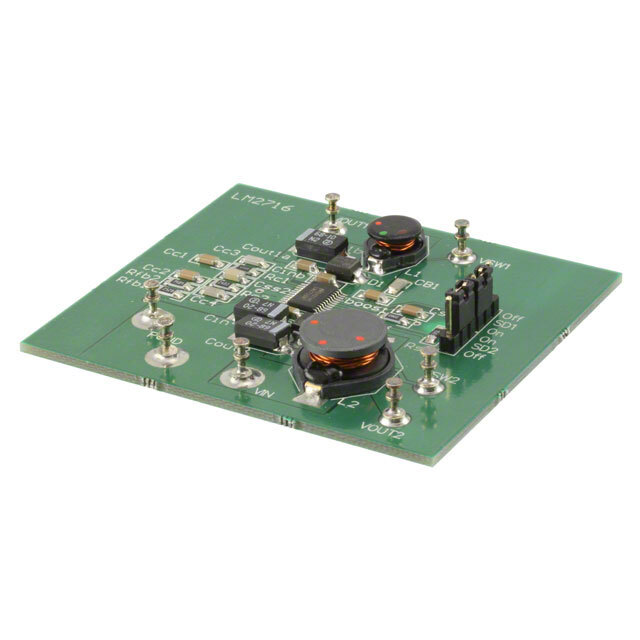

BOARD EVALUATION LM2716MT

Part	Regulator Topology	Current - Output	Board Type	Voltage - Output	Outputs and Type	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Utilized IC / Part	Main Purpose	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Output Configuration	Package / Case	Package / Case	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed)	Topology	Output Type	Voltage - Input (Min) [Min]	Function	Supplier Device Package	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Switching [Max]	Frequency - Switching [Min]
Texas Instruments LM2716MTEV	Buck-Boost	1.8 A 2 A	Fully Populated	3.3 V 15 VDC	2	Non-Isolated	20 V	4 V	Board(s)	LM2716	DC/DC Step Up or Down
Texas Instruments LM2716MTX		1.8 A 3.6 A										2	20 V	20 V	Positive	24-TSSOP	0.173 in 4.4 mm	3.3 V	4 V	Boost Buck	Adjustable (Fixed)	4 V	Step-Down Step-Up	24-TSSOP	Surface Mount	-40 °C	125 ¯C	600 kHz	300 kHz
Texas Instruments LM2716MTX/NOPB		1.8 A 3.6 A										2	20 V	20 V	Positive	24-TSSOP	0.173 in 4.4 mm	3.3 V	4 V	Boost Buck	Adjustable (Fixed)	4 V	Step-Down Step-Up	24-TSSOP	Surface Mount	-40 °C	125 ¯C	600 kHz	300 kHz
