SRR1005 Series

Catalog

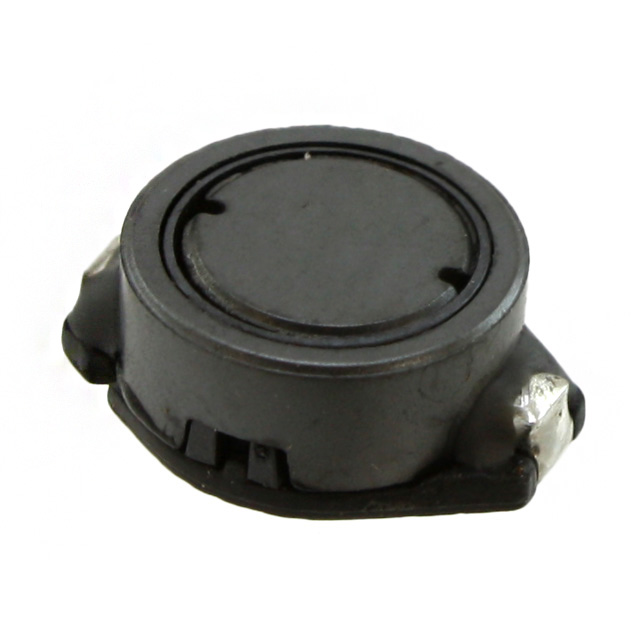

POWER INDUCTOR (SMD), 100 ΜH, 680 MA, SHIELDED, 900 MA, SRR1005 SERIES

Part	Mounting Type	Tolerance	Type	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Package / Case	DC Resistance (DCR)	Q @ Freq	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Frequency - Self Resonant	Shielding	Material - Core	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRR1005-101K	Surface Mount	10 %	Drum Core Wirewound	0.68 A	0.5 "	12.7 mm	10 mm	0.394 in	125 °C	-40 C	900 mA	Nonstandard	420 mOhm	35 796 kHz	1 kHz	0.205 in	5.2 mm	100 µH	7.5 MHz	Shielded	Ferrite
Bourns Inc. SRR1005-180Y	Surface Mount	15 %	Drum Core Wirewound	1.6 A	0.5 "	12.7 mm	10 mm	0.394 in	125 °C	-40 C	2.1 A	Nonstandard		2.52 MHz 35	1 kHz	0.205 in	5.2 mm	18 µH	19 MHz	Shielded	Ferrite	90 mOhm
Bourns Inc. SRR1005-561K	Surface Mount	10 %	Drum Core Wirewound	0.28 A	0.5 "	12.7 mm	10 mm	0.394 in	125 °C	-40 C	420 mA	Nonstandard		40 796 kHz	1 kHz	0.205 in	5.2 mm	560 µH	2.7 MHz	Shielded	Ferrite	1.8 Ohm
Bourns Inc. SRR1005-471K	Surface Mount	10 %	Drum Core Wirewound	0.3 A	0.5 "	12.7 mm	10 mm	0.394 in	125 °C	-40 C	450 mA	Nonstandard		40 796 kHz	1 kHz	0.205 in	5.2 mm	470 µH	3 MHz	Shielded	Ferrite	1.6 Ohm
Bourns Inc. SRR1005-150M	Surface Mount	20 %	Drum Core Wirewound	1.7 A	0.5 "	12.7 mm	10 mm	0.394 in	125 °C	-40 C	2.1 A	Nonstandard			1 kHz	0.205 in	5.2 mm	15 µH	20 MHz	Shielded	Ferrite	85 mOhm	40	2.52 MHz
Bourns Inc. SRR1005-3R3M	Surface Mount	20 %	Drum Core Wirewound	3.3 A	0.5 "	12.7 mm	10 mm	0.394 in	125 °C	-40 C	3.9 A	Nonstandard	39 mOhm	7.96 MHz 25	1 kHz	0.205 in	5.2 mm	3.3 µH	75 MHz	Shielded	Ferrite
Bourns Inc. SRR1005-220M	Surface Mount	20 %	Drum Core Wirewound	1.4 A	0.5 "	12.7 mm	10 mm	0.394 in	125 °C	-40 C	1.9 A	Nonstandard	100 mOhm		1 kHz	0.205 in	5.2 mm	22 µH	18 MHz	Shielded	Ferrite		42		2.52 MHz
Bourns Inc. SRR1005-270Y	Surface Mount	15 %	Drum Core Wirewound	1.3 A	0.5 "	12.7 mm	10 mm	0.394 in	125 °C	-40 C	1.6 A	Nonstandard			1 kHz	0.205 in	5.2 mm	27 µH	17 MHz	Shielded	Ferrite	120 mOhm	40	2.52 MHz
Bourns Inc. SRR1005-102K	Surface Mount	10 %	Drum Core Wirewound	0.22 A	0.5 "	12.7 mm	10 mm	0.394 in	125 °C	-40 C	320 mA	Nonstandard	3.2 Ohm	65 252 kHz	1 kHz	0.205 in	5.2 mm	1 mH	2 MHz	Shielded	Ferrite
