EN3L8M Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

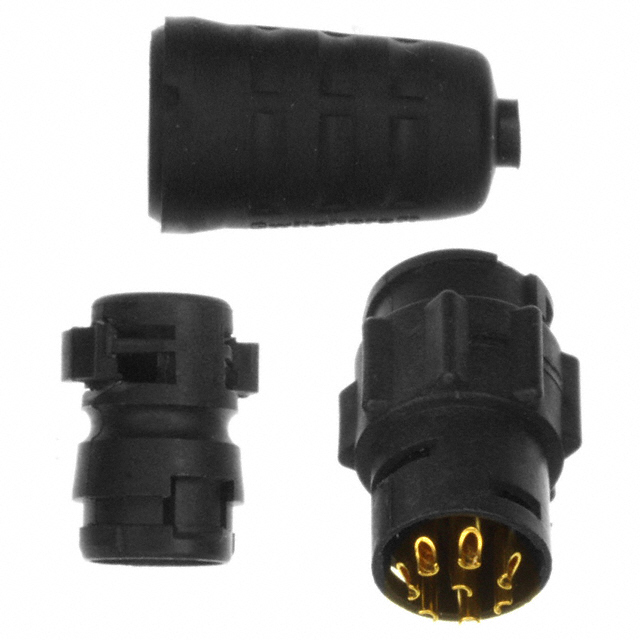

CONN RCPT MALE 8P GOLD SLDR CUP
| Part | Number of Positions | Contact Material | Shielding | Current Rating (Amps) | Primary Material | Voltage Rating | Backshell Material, Plating | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Ingress Protection | Connector Type | Fastening Type | Features | Cable Opening [diameter] | Cable Opening [diameter] | Applications | Material Flammability Rating | Orientation | Insert Material | Color | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | 8 | Copper Alloy | Unshielded | 6.5 A | Plastic | 250 VAC | Thermoplastic | Free Hanging (In-Line) | 65 °C | -40 °C | Gold | IP66/IP68 | Male Pins Receptacle | Bayonet Lock | Backshell Cable Clamp | 4.06 mm 6.73 mm | 0.16 in 0.265 in | General Purpose Instrumentation Marine Medical | UL94 V-0 | Keyed | Elastomer | Black | |
Switchcraft Inc. | 8 | Copper Alloy | Unshielded | 6.5 A | Plastic | 250 VAC | Thermoplastic | Free Hanging (In-Line) | 65 °C | -40 °C | Gold | IP66/IP68 | Male Pins Receptacle | Bayonet Lock | Backshell Cable Clamp | 4.06 mm 6.73 mm | 0.16 in 0.265 in | General Purpose Instrumentation Marine Medical | UL94 V-0 | Keyed | Elastomer | Black | Crimp |
