6232 Series

Catalog

FPC 1.0 MM / TAPE/REEL ROHS COMPLIANT: YES

Part	Current Rating (Amps)	Features	Housing Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	FFC, FCB Thickness	Flat Flex Type	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Number of Positions	Cable End Type	Connector/Contact Type	Mounting Type	Contact Material	Contact Finish
KYOCERA AVX 046232122102800+	0.5 A	Low Insertion Force (LIF) Solder Retention	Thermoplastic	50 V	85 °C	-20 ░C	Solder	0.3 mm	FFC FPC	0.118 in	3 mm	1 mm	0.039 in	22	Straight	Contacts Bottom	Right Angle Surface Mount	Copper Alloy	Tin Copper
KYOCERA AVX 006232013102800+	0.5 A	Low Insertion Force (LIF) Solder Retention	Thermoplastic	50 V	85 °C	-20 ░C	Solder	0.3 mm	FFC FPC	0.118 in	3 mm	1 mm	0.039 in	13	Straight	Contacts Bottom	Right Angle Surface Mount	Copper Alloy	Tin Copper
KYOCERA AVX 046232110103800+		Low Insertion Force (LIF) Solder Retention	Plastic	50 V	85 °C	-20 ░C	Solder	0.3 mm	FFC FPC	0.118 in	3 mm	1 mm	0.039 in	10	Straight	Contacts Top	Right Angle Surface Mount	Copper Alloy	Tin Copper

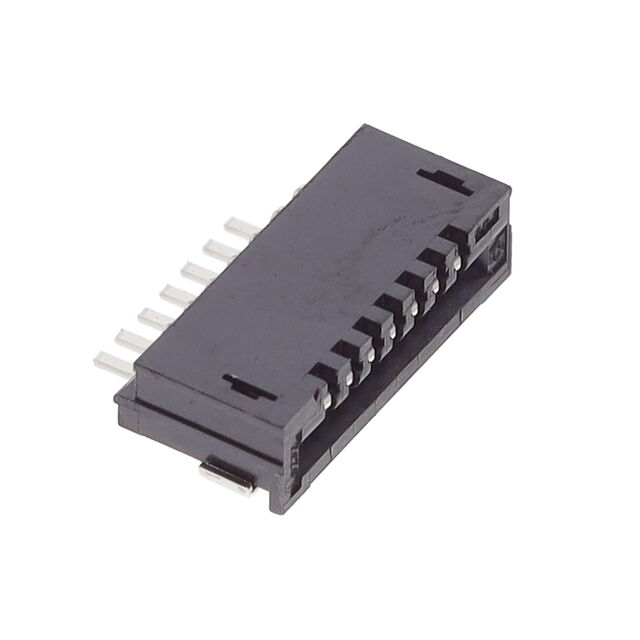

KYOCERA AVX 046232107103800+	0.5 A	Low Insertion Force (LIF) Solder Retention	Thermoplastic	50 V	85 °C	-20 ░C	Solder	0.3 mm	FFC FPC	0.118 in	3 mm	1 mm	0.039 in	7	Straight	Contacts Top	Right Angle Surface Mount	Copper Alloy	Tin Copper
KYOCERA AVX 046232127015800+	0.5 A	Low Insertion Force (LIF)	Thermoplastic	50 V	85 °C	-20 ░C	Solder	0.3 mm	FFC FPC	0.201 in	5.1 mm	1 mm	0.039 in	27	Straight	Contacts Vertical - 1 Sided	Surface Mount	Copper Alloy	Tin Copper

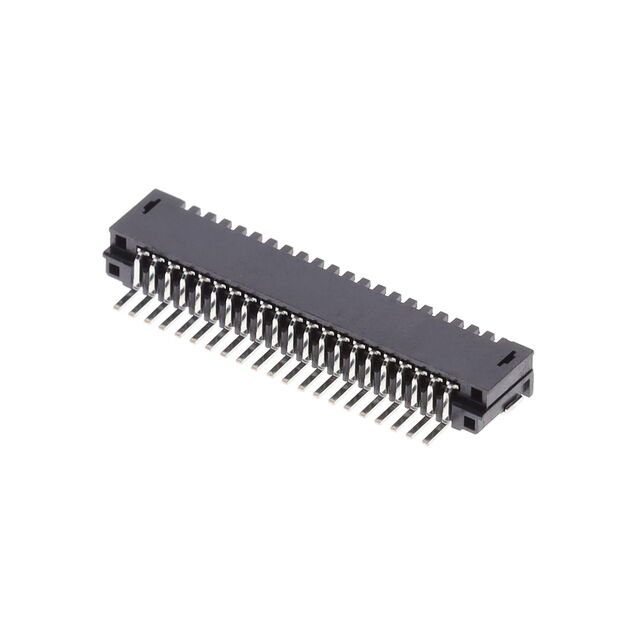

KYOCERA AVX 046232121103800+	0.5 A	Low Insertion Force (LIF) Solder Retention	Thermoplastic	50 V	85 °C	-20 ░C	Solder	0.3 mm	FFC FPC	0.118 in	3 mm	1 mm	0.039 in	21	Straight	Contacts Top	Right Angle Surface Mount	Copper Alloy	Tin Copper
KYOCERA AVX 006232009006800+	0.5 A	Low Insertion Force (LIF)	Thermoplastic	50 V	85 °C	-20 ░C	Kinked Pin	0.3 mm	FFC FPC	0.217 in	5.5 mm	1 mm	0.039 in	9	Straight	Contacts Vertical - 1 Sided	Through Hole	Copper Alloy	Tin
KYOCERA AVX 006232026102800+	0.5 A	Low Insertion Force (LIF) Solder Retention	Thermoplastic	50 V	85 °C	-20 ░C	Solder	0.3 mm	FFC FPC	0.118 in	3 mm	1 mm	0.039 in	26	Straight	Contacts Bottom	Right Angle Surface Mount	Copper Alloy	Tin Copper
KYOCERA AVX 006232024006800+	0.5 A	Low Insertion Force (LIF)	Thermoplastic	50 V	85 °C	-20 ░C	Kinked Pin	0.3 mm	FFC FPC	0.217 in	5.5 mm	1 mm	0.039 in	24	Straight	Contacts Vertical - 1 Sided	Through Hole	Copper Alloy	Tin

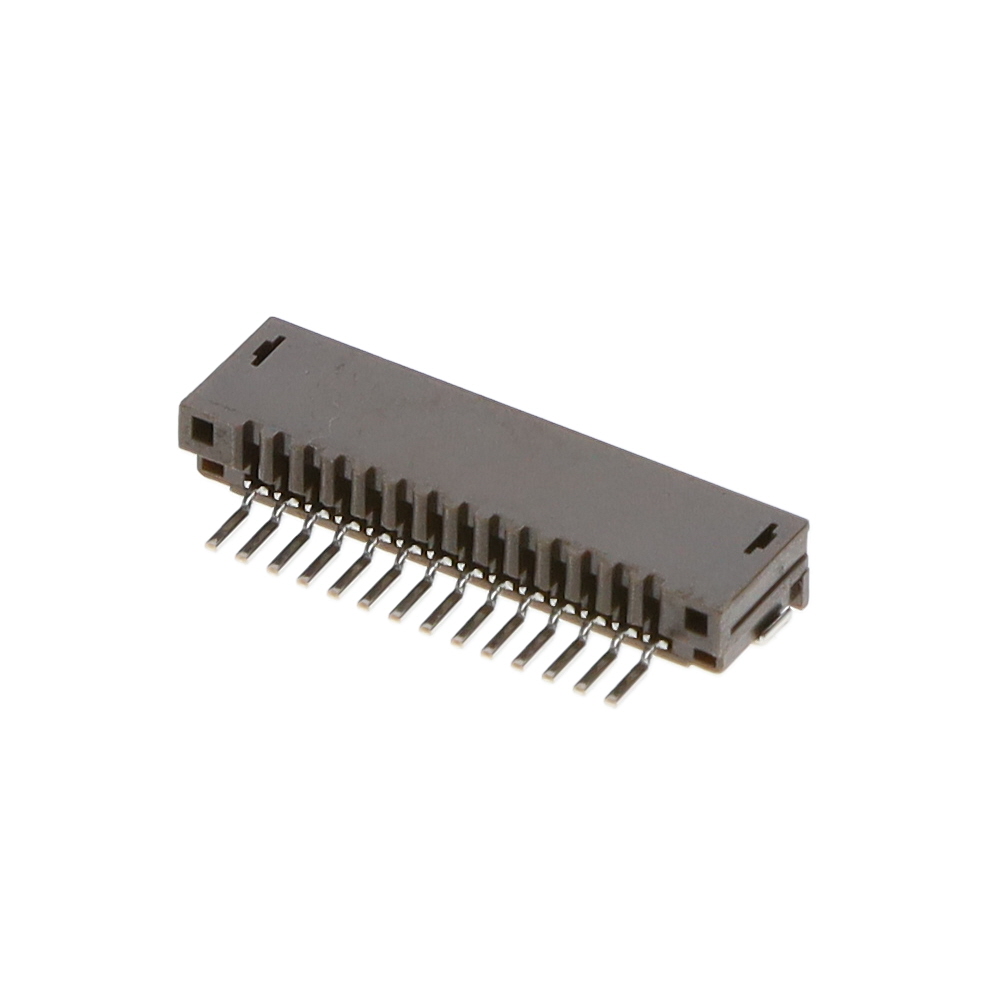

KYOCERA AVX 046232114102800+	0.5 A	Low Insertion Force (LIF) Solder Retention	Plastic	50 V	85 °C	-20 ░C	Solder	0.3 mm	FFC FPC	0.118 in	3 mm	1 mm	0.039 in	14	Straight	Contacts Bottom	Right Angle Surface Mount	Copper Alloy	Tin Copper
