RXM3A Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K

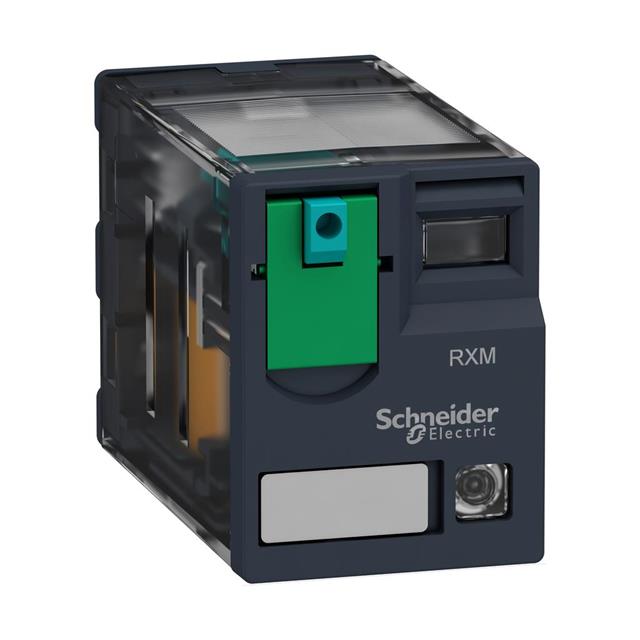

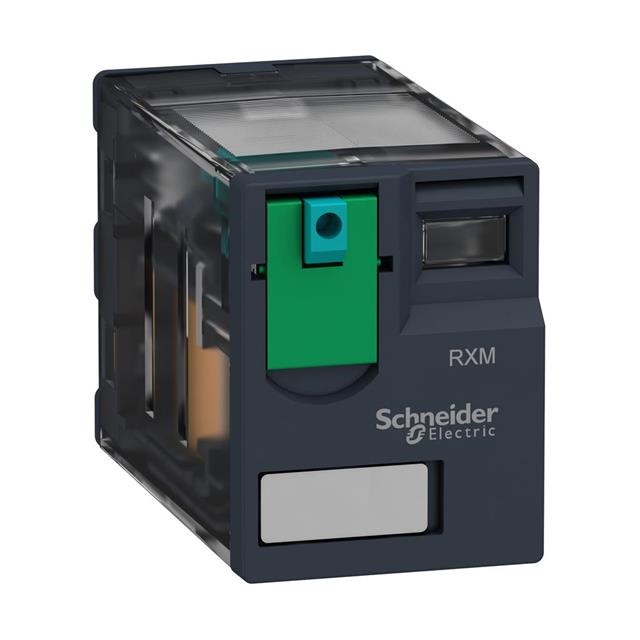

POWER RELAY, 3PDT, 48 VAC, 10 A, ZELIO RXM SERIES, SOCKET
| Part | Coil Resistance | Load - Max Switching | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Termination Style | Switching Voltage [Max] | Coil Type | Coil Voltage | Operate Time | Contact Rating (Current) | Must Release Voltage | Contact Material | Mounting Type | Relay Type | Contact Form | Must Operate Voltage | Features | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 710 Ohms | 280 W 2500 VA | 67.6 mA | 55 °C | -40 C | CE CSA GOST IECEE Lloyd's UL | Plug In | 28 VDC 250 VAC | Non Latching | 48 VAC | 20 ms | 10 A | 7.2 VAC | Silver Nickel (AgNi) | Socketable | General Purpose | 3PDT (3 Form C) | 38.4 VAC | Lighted Indicator Test Button | 20 ms |
 SCHNEIDER ELECTRIC | 15 kOhms | 280 W 2500 VA | 15.3 mA | 55 °C | -40 C | CE CSA GOST IECEE Lloyd's UL | Plug In | 28 VDC 250 VAC | Non Latching | 230 VAC | 20 ms | 10 A | 34.5 VAC | Silver Nickel (AgNi) | Socketable | General Purpose | 3PDT (3 Form C) | 184 VAC | Lighted Indicator Test Button | 20 ms |
 SCHNEIDER ELECTRIC | 710 Ohms | 280 W 2500 VA | 67.6 mA | 55 °C | -40 C | CE CSA GOST IECEE Lloyd's UL | Plug In | 28 VDC 250 VAC | Non Latching | 48 VAC | 20 ms | 10 A | 7.2 VAC | Silver Nickel (AgNi) | Socketable | General Purpose | 3PDT (3 Form C) | 38.4 VAC | Test Button | 20 ms |
 SCHNEIDER ELECTRIC | 160 Ohms | 280 W 2500 VA | 0.075 A | 55 °C | -40 C | CE CSA GOST IECEE Lloyd's UL | Plug In | 28 VDC 250 VAC | Non Latching | 12 VDC | 20 ms | 10 A | 1.2 VDC | Silver Nickel (AgNi) | Socketable | General Purpose | 3PDT (3 Form C) | 9.6 VDC | Lighted Indicator Test Button | 20 ms |
SCHNEIDER ELECTRIC | 180 Ohms | 187.6 W 1675 VA | 133.3 mA | 55 °C | -40 C | CE CSA GOST IECEE Lloyd's UL | Plug In | 28 VDC 250 VAC | Non Latching | 24 VAC | 20 ms | 6.7 A | 3.6 VAC | Silver Nickel (AgNi) | Socketable | General Purpose | 3PDT (3 Form C) | 19.2 VAC | Lighted Indicator Test Button | 20 ms |
 SCHNEIDER ELECTRIC | 650 Ohms | 187.6 W 1675 VA | 36.9 mA | 55 °C | -40 C | CE CSA GOST IECEE Lloyd's UL | Plug In | 28 VDC 250 VAC | Non Latching | 24 VDC | 20 ms | 6.7 A | 2.4 VDC | Silver Nickel (AgNi) | Socketable | General Purpose | 3PDT (3 Form C) | 19.2 VDC | Lighted Indicator Test Button | 20 ms |
 SCHNEIDER ELECTRIC | 160 Ohms | 280 W 2500 VA | 0.075 A | 55 °C | -40 C | CE CSA GOST IECEE Lloyd's UL | Plug In | 28 VDC 250 VAC | Non Latching | 12 VDC | 20 ms | 10 A | 1.2 VDC | Silver Nickel (AgNi) | Socketable | General Purpose | 3PDT (3 Form C) | 9.6 VDC | Test Button | 20 ms |
SCHNEIDER ELECTRIC | 13.44 kOhms | 280 W 2500 VA | 8.2 mA | 55 °C | -40 C | CE CSA GOST IECEE Lloyd's UL | Plug In | 28 VDC 250 VAC | Non Latching | 110 VDC | 20 ms | 10 A | 11 VDC | Silver Nickel (AgNi) | Socketable | General Purpose | 3PDT (3 Form C) | 88 VDC | Test Button | 20 ms |
SCHNEIDER ELECTRIC | 13.44 kOhms | 280 W 2500 VA | 8.2 mA | 55 °C | -40 C | CE CSA GOST IECEE Lloyd's UL | Plug In | 28 VDC 250 VAC | Non Latching | 110 VDC | 20 ms | 10 A | 11 VDC | Silver Nickel (AgNi) | Socketable | General Purpose | 3PDT (3 Form C) | 88 VDC | Lighted Indicator Test Button | 20 ms |
SCHNEIDER ELECTRIC | 180 Ohms | 280 W 2500 VA | 133.3 mA | 55 °C | -40 C | CE CSA GOST IECEE Lloyd's UL | Plug In | 28 VDC 250 VAC | Non Latching | 24 VAC | 20 ms | 10 A | 3.6 VAC | Silver Nickel (AgNi) | Socketable | General Purpose | 3PDT (3 Form C) | 19.2 VAC | Test Button | 20 ms |
