8254 Series
Manufacturer: Belden Inc.
Beta
⌘K

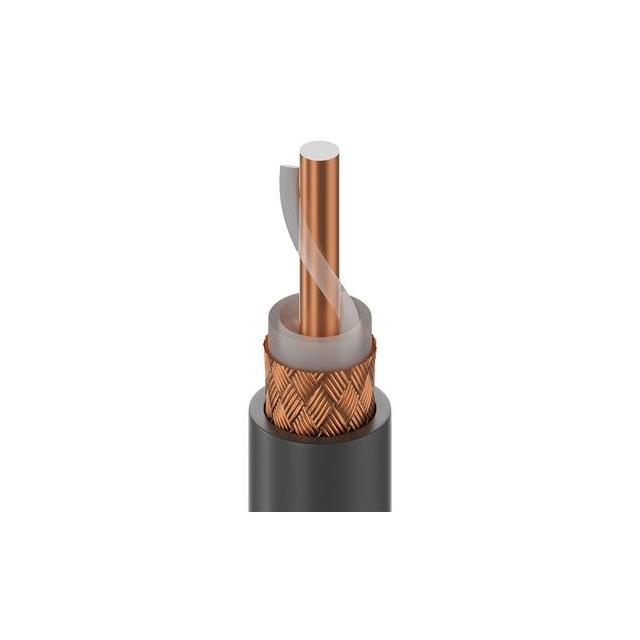

COAX RG-62/U JAN-C-17A
| Part | Dielectric Material | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | VoP, Velocity of Propagation | Shield Material | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Jacket Color | Cable Group | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Impedance | Conductor Strand | Wire Gauge | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Semi Solid Polyethylene (SSPE) | 95 % | 3.71 mm | 0.146 in | 84 | Copper Bare | Copper Coated Steel | 80 °C | -40 C | Poly-Vinyl Chloride (PVC) | Black | RG-62 | Coaxial | 0.238 " | 6.05 mm | 93 Ohms | Solid | 22 AWG | Braid |
