ANT-418 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ANTENNA 1/4 WAVE WHIP 418MHZ SMA

Part	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Number of Bands	RF Family/Standard	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Height (Max) [z]	Height (Max) [Max] [z]	Applications	Frequency (Center/Band)	VSWR	Antenna Type	Gain	Termination	Height (Max) [z]	Height (Max) [z]	Termination	Features

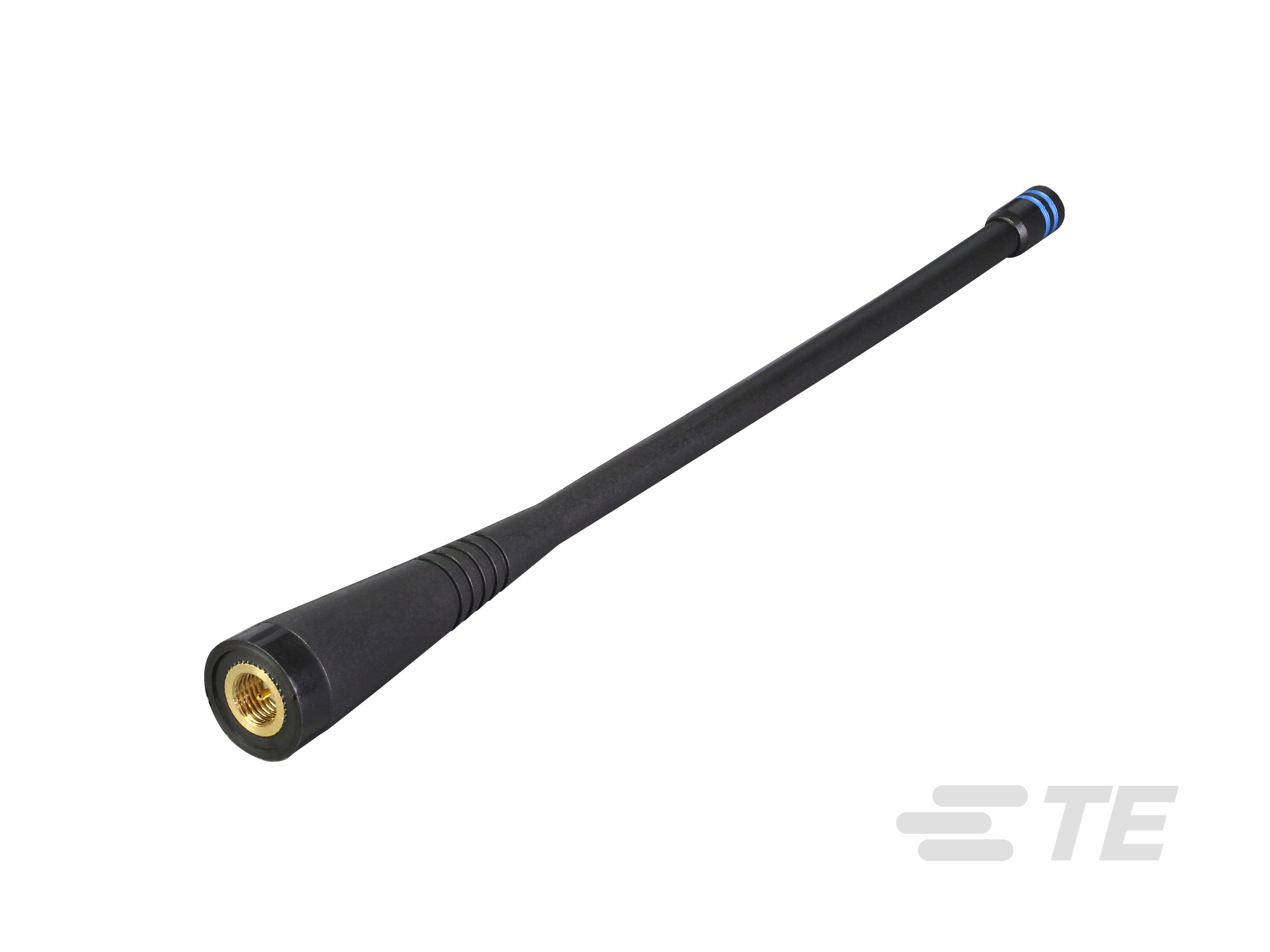

TE Connectivity AMP Connectors ANT-418-CW-QW-SMA	Connector Mount	450 MHz	380 MHz	1	General ISM	1 GHz	UHF	300 MHz	178 mm	7.008 in	Alarms ISM Remote Control Security Systems	380 MHz 410 MHz 450 MHz	1.9	Whip Straight	2.9 dBi
TE Connectivity AMP Connectors ANT-418-USP	Surface Mount	422 MHz	414 MHz	1	General ISM	1 GHz	UHF	300 MHz	2.62 mm		Alarms ISM Remote Control Security Systems	418 MHz	1.9	Chip	-8.9 dBi	Solder	0.103 in

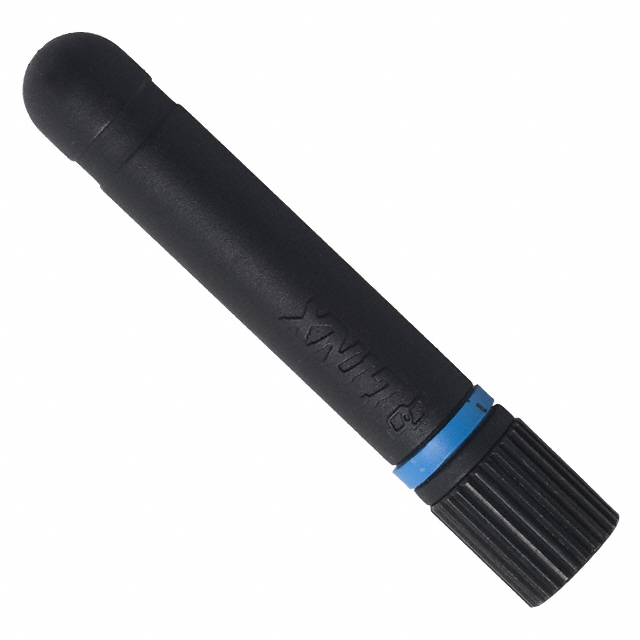

TE Connectivity AMP Connectors ANT-418-CW-RH	Connector Mount	423 MHz	413 MHz	1	General ISM	1 GHz	UHF	300 MHz	51 mm		Alarms ISM Remote Control Security Systems	418 MHz	1.9	Whip Straight	-6.7 dBi	RP-SMA Male		2.008 in

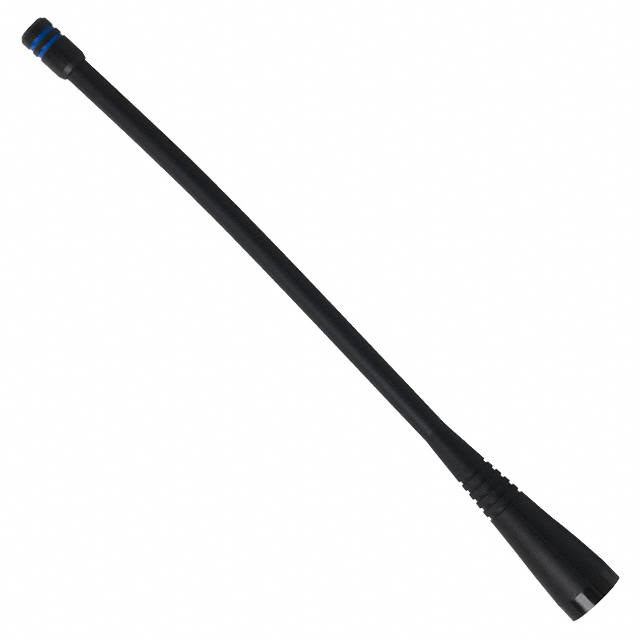

TE Connectivity AMP Connectors ANT-418-CW-QW	Connector Mount	450 MHz	380 MHz	1	General ISM	1 GHz	UHF	300 MHz	178 mm	7.008 in	Alarms ISM Remote Control Security Systems	380 MHz 410 MHz 450 MHz	1.9	Whip Straight	2.9 dBi	RP-SMA Male
TE Connectivity AMP Connectors ANT-418-USP-T	Surface Mount	423 MHz	413 MHz	1	General ISM	1 GHz	UHF	300 MHz	2.62 mm		Alarms ISM Remote Control Security Systems	418 MHz	2	Chip	-8.9 dBi	Solder	0.103 in

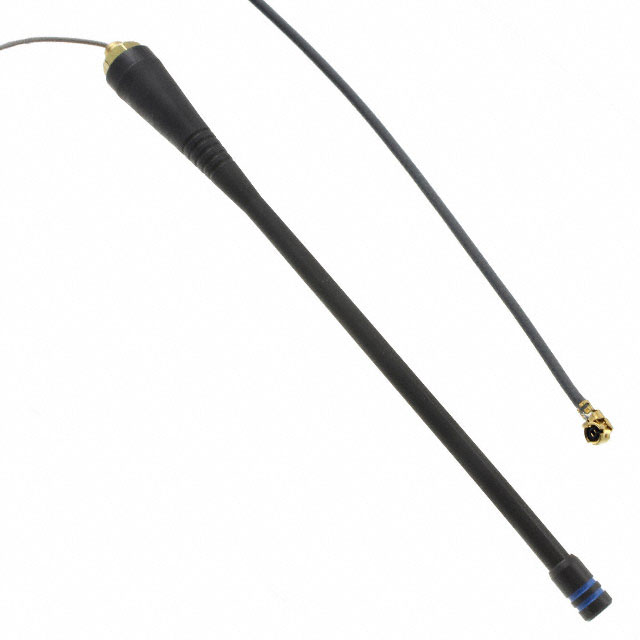

TE Connectivity AMP Connectors ANT-418-PW-QW-UFL	Panel Mount	450 MHz	380 MHz	1	General ISM	1 GHz	UHF	300 MHz	178 mm	7.008 in	Alarms ISM Remote Control Security Systems	418 MHz	1.9	Whip Straight	2.9 dBi	I-PEX MHF1 U.FL (UMCC)			IPEX MHF1	Cable - 216mm

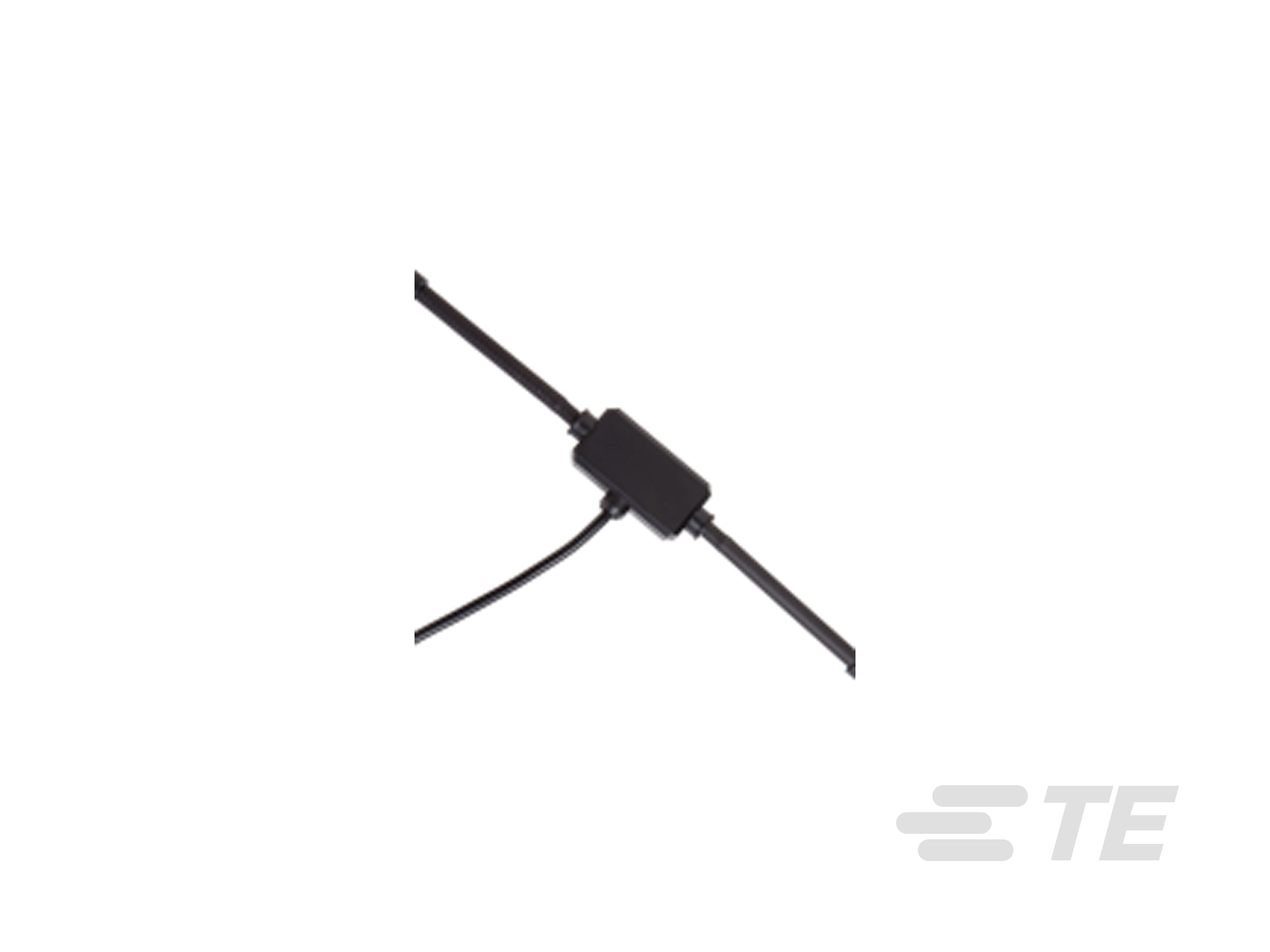

TE Connectivity AMP Connectors ANT-418-MHW-RPS-S	Adhesive	428 MHz	408 MHz	1	General ISM	1 GHz	UHF	300 MHz	150 mm		Alarms ISM Remote Control Security Systems	418 MHz	1.9	Whip Center-Fed Double	2.1 dBi	RP-SMA Male	5.906 in			Cable - 2m

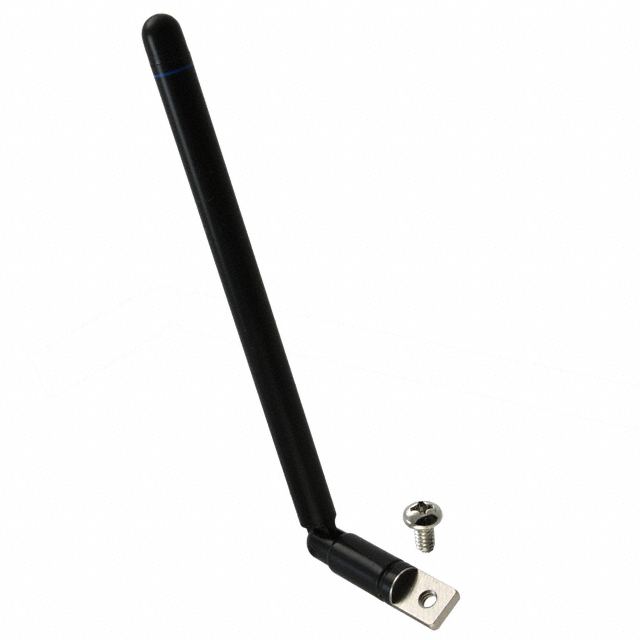

TE Connectivity AMP Connectors ANT-418-PW-RA	Panel Mount	427 MHz	409 MHz	1	General ISM	1 GHz	UHF	300 MHz	131.57 mm		Alarms ISM Remote Control Security Systems	418 MHz	2	Tilt Whip	2 dBi	Screw-Mount	5.18 in

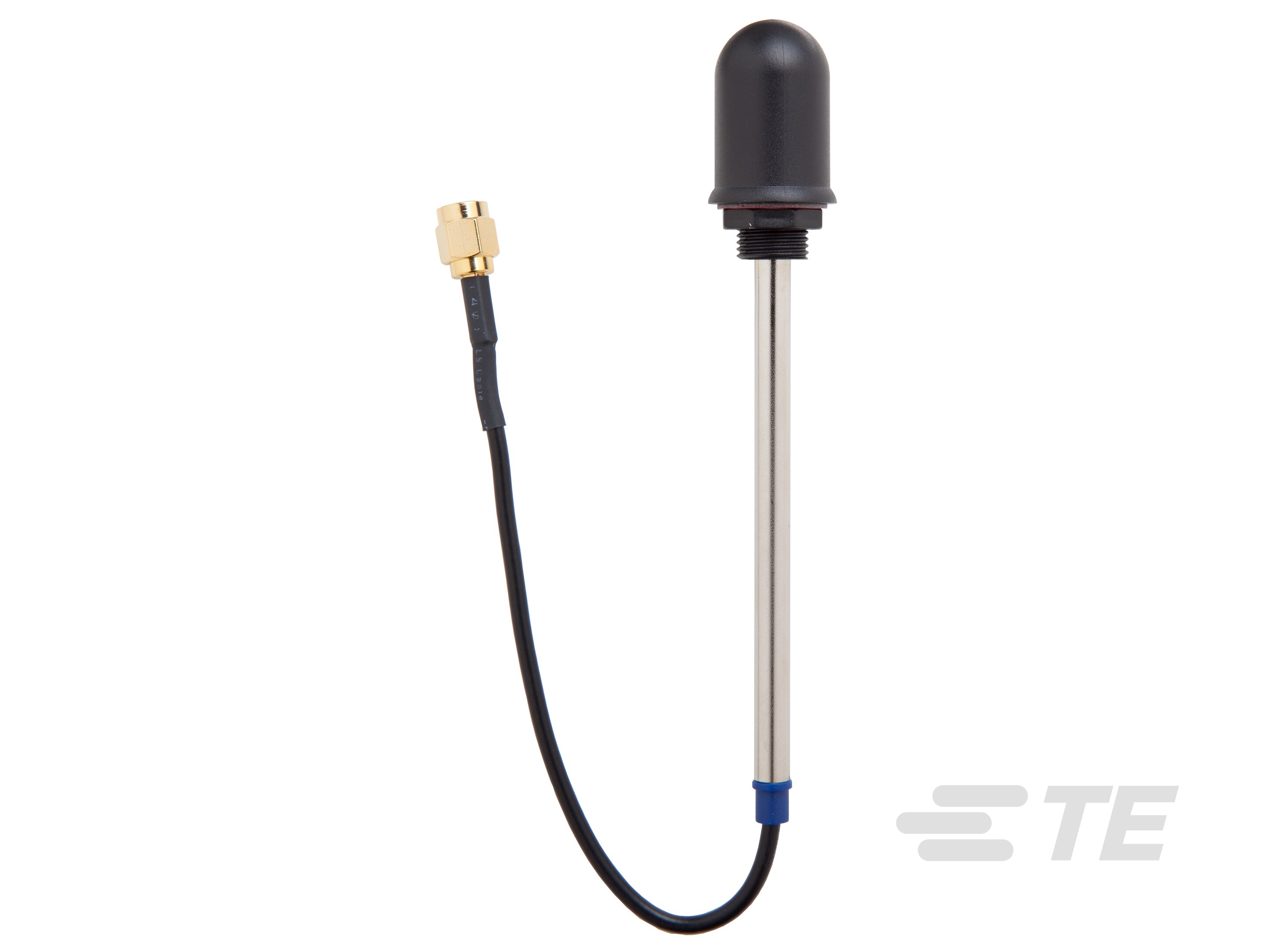

TE Connectivity AMP Connectors ANT-418-WRT-RPS	Panel Mount	426 MHz	409 MHz	1	General ISM	1 GHz	UHF	300 MHz	27 mm		Alarms ISM Remote Control Security Systems	400 MHz 410 MHz	1.9	Dome	-1.3 dBi	RP-SMA Male	1.063 in			Cable - 216mm

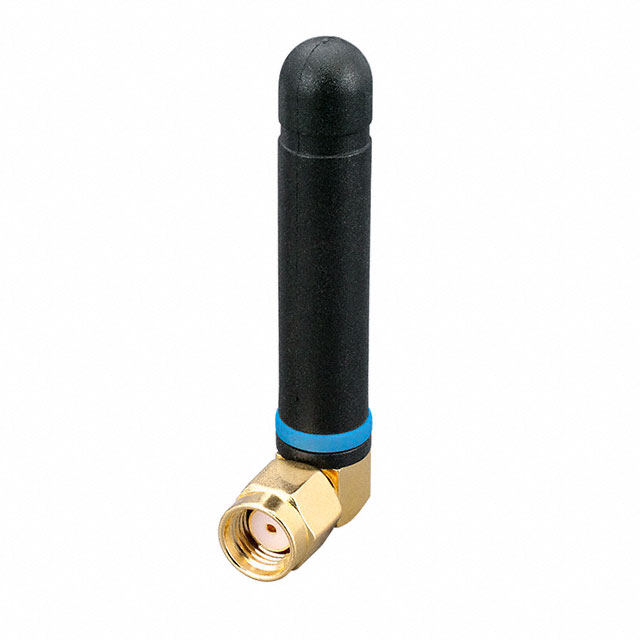

TE Connectivity AMP Connectors ANT-418-CW-RAH	Connector Mount	426 MHz	410 MHz	1	General ISM	1 GHz	UHF	300 MHz	47 mm		Alarms ISM Remote Control Security Systems	418 MHz	1.9	Right Angle Whip	-6.1 dBi	RP-SMA Male	1.85 in
