RM6070 Series

Catalog

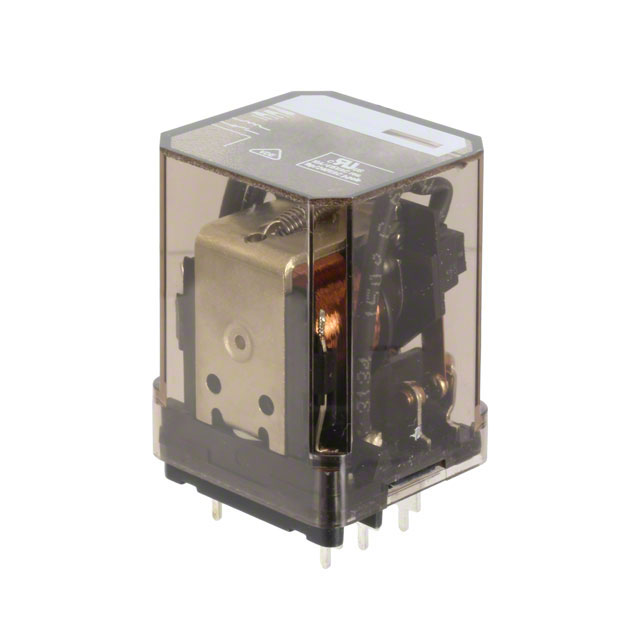

RELAY GEN PURPOSE 3PST 10A 24V

Part	Coil Resistance	Coil Current	Approval Agency	Release Time	Mounting Type	Load - Max Switching [Max]	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Switching Voltage [Max]	Relay Type	Must Release Voltage	Coil Voltage	Coil Type	Must Operate Voltage	Contact Form	Operate Time	Contact Material
TE Connectivity AMP Connectors RM607024	345 Ohms	70.8 mA	cURus VDE	5 ms	Through Hole	4000 VA	10 A	60 °C	-45 °C	PC Pin	400 VAC	General Purpose	2.4 VDC	24 VDC	Non Latching	18 VDC	3PST-NO (3 Form A)	15 ms	Silver Cadmium Oxide (AgCdO)
TE Connectivity AMP Connectors RM607012	86 Ohms	140 mA	cURus VDE	5 ms	Through Hole	4000 VA	10 A	60 °C	-45 °C	PC Pin	400 VAC	General Purpose	1.2 VDC	12 VDC	Non Latching	9 VDC	3PST-NO (3 Form A)	15 ms	Silver Cadmium Oxide (AgCdO)
