1189AP Series
Manufacturer: Belden Inc.
Beta
⌘K

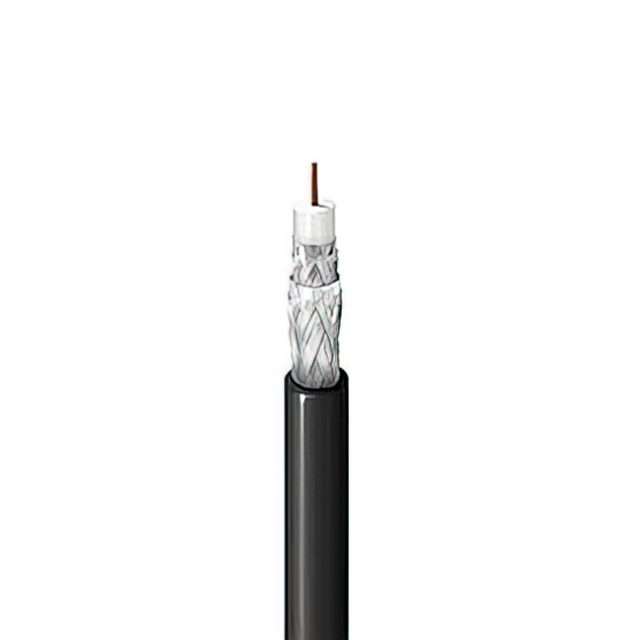

COAX 75 OHM RG6 18AWG PLENUM
| Part | Shield Material | Dielectric Material | Shield Coverage | VoP, Velocity of Propagation | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Type | Jacket (Insulation) Material | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Group | Usage | Cable Type | Length [x] | Length [x] | Features | Impedance | Wire Gauge | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | Foam Fluorinated Ethylene Propylene (FFEP) | 40 % 60 % 100 % | 83 | Copper Coated Steel | 4.32 mm | 0.17 in | Braid Foil | Low Smoke Poly-Vinyl Chloride (LSPVC) | Solid | 0.248 " | 6.3 mm | RG-6 | CATV | Coaxial - Plenum | 304.8 m | 1000 ft | Quad Shield | 75 Ohms | 18 AWG | Natural |
